Product Details
Place of Origin: China
Brand Name: JGPV
Model Number: Q71F-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD27.9/Set - USD599.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Ball Valve Product |
Manufacturing Craft: |
Casting |
Pressure Nominal: |
Class 150, PN16, PN25 |
Medium Type: |
Water, Steam, Oil And Weak Corrosive Mediums |
Driven Methold: |
Level, Worm Gear, Pneumatic And Electric Actuator |
Connection: |
ANSI Flanges |
Customization Support: |
OEM |
Warranty: |
18 Months |
Name: |
Flange End Ball Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Ball Valve Product |
Manufacturing Craft: |
Casting |
Pressure Nominal: |
Class 150, PN16, PN25 |
Medium Type: |
Water, Steam, Oil And Weak Corrosive Mediums |
Driven Methold: |
Level, Worm Gear, Pneumatic And Electric Actuator |
Connection: |
ANSI Flanges |
Customization Support: |
OEM |
Warranty: |
18 Months |
Name: |
Flange End Ball Valve |

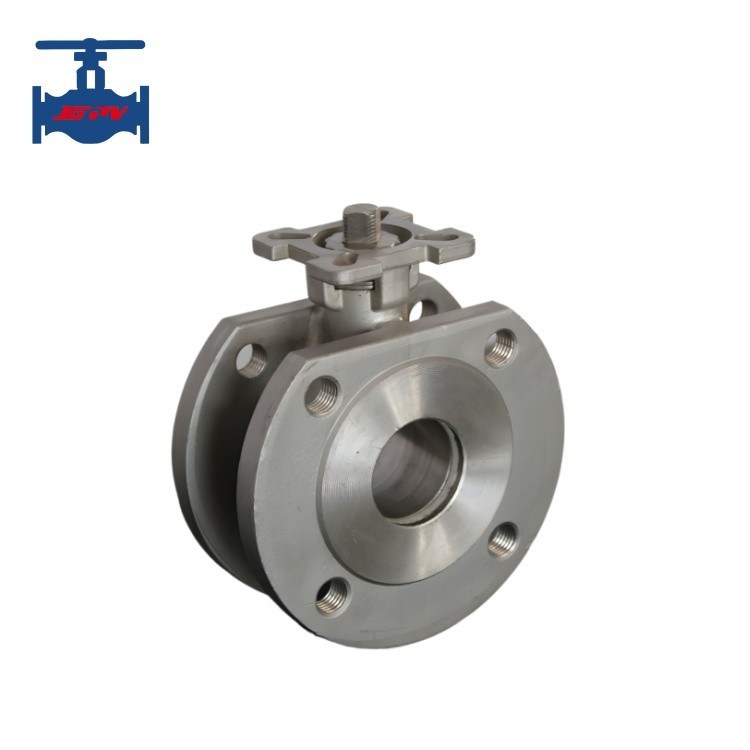

WCB CF8 CF8M Italian Type Thin Wafer Ball Valve With ISO5211 Mounting Pad
Product introductioin:
Italian type thin ball valve is a new generation of ultra short flange pitch ball valve developed by introducing Italian technology, its ball core channel shapes are rectangular, V-shaped, and O-shaped. This series of products has the characteristics of compact structure, small volume, light weight, and easy installation. It can be widely used in fields such as petroleum, chemical industry, metallurgy, power plants, light industry, etc., and can automatically adjust or cut off control oil, water, gas, pulp or fibrous fluids.
The Italian type thin ball valve is suitable for various pipelines with a working temperature of Class150, PN1.0-2.5MPa, 29-180 ℃ (reinforced polytetrafluoroethylene sealing ring) or 29-300 ℃ (counterpoint polystyrene sealing ring). They are used to cut off or connect the medium in the pipeline. Different materials are selected and can be used for various media such as water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, etc.
Product technical paratmeters:
| Port size | DN15-DN200 |
| Pressure nominal | PN10, PN16, PN40 |
| Flange type | PN10, PN16, PN40, ANSI 150LB, 300LB |
| Operational method | Level, worm gear, pneumatic and electric actuators |
| Raw material of body | WCB, CF8, CF8M |
| Raw material of ball | Stainless steel 304 and 316 |
| Sealing | PTFE |
| Medium type | Water, steam,oil and weak corrosive mediums etc. |
| Working temperature | -29~180℃ |
Product features:
1. Compared with ordinary ball valves, ultra-thin ball valves have significant advantages such as short structural length, light weight, convenient installation, and material savings.
2. Italian type thin ball valve's seat adopts an elastic sealing structure, which is reliable and easy to open and close.
3. Equipped with a fire-resistant structure, Italian type thin ball valve can still operate reliably and has good sealing performance in the event of a fire.
4. According to user needs, anti-static structures can be installed. A 90 ° switch with hole positioning plate has been set up, which can be locked as needed to prevent accidental operation.
