Flange Connection Self Operated Dynamic Flow Balance Valve Ductile Iron

Name: Flange Connection Self Operated Dynamic Flow Balance Valve Ductile Iron
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: ZL47F-JGPV
Price: 3,484.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: ZL47F-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD79.9/Set - 6889.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Dynamic Flow Balance Valve, Flow Balance Valve Ductile Iron, Self Operated Dynamic Balance Valve


Standard Or Non-standrd:	Standard	Application:	HVAC Systems, Water Supply Etc
Product Function:	Fluid Pressure Regulation And Balance	Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure	Power:	Hydraulic
Manufacturing Craft:	Casting	Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months	Name:	Hydraulic Water Control Valve

Standard Or Non-standrd:	Standard
Application:	HVAC Systems, Water Supply Etc
Product Function:	Fluid Pressure Regulation And Balance
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

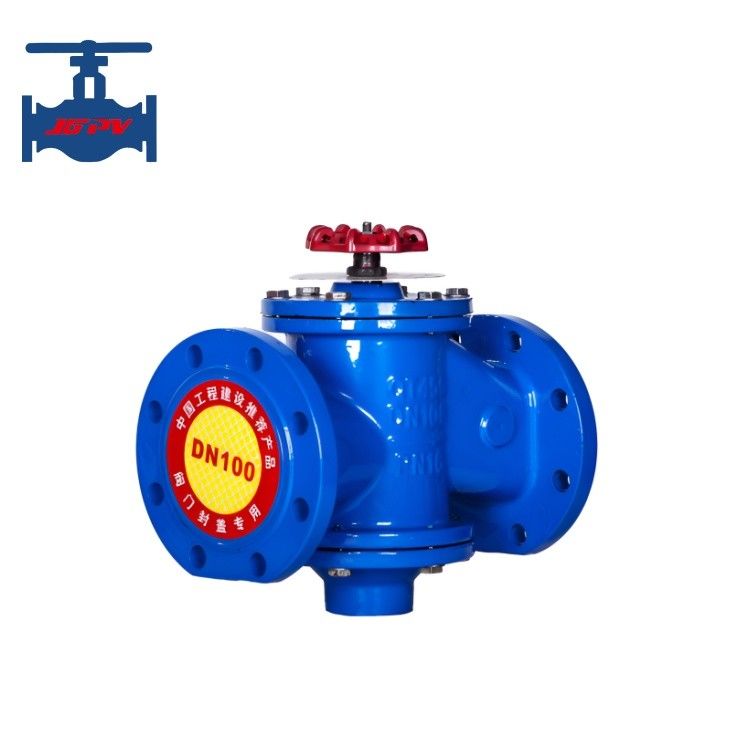

Flange Connection Self Operated Dynamic Flow Balance Valve Ductile Iron

Ductile Iron Flange Connection Self Operated Dynamic Flow Balance Valve

Product introduction:

Self operated dynamic flow balance valve is a valve used to regulate and balance the fluid flow in pipeline systems. It can automatically adjust the opening of the valve according to the pressure changes inside the system to achieve dynamic flow balance. Widely used in building HVAC systems, water supply systems, and other situations that require dynamic flow control.

The self operated dynamic flow balancing valve mainly consists of an automatic regulating valve and a manual regulating valve disc. By utilizing the pressure change of the medium itself as the driving force, it automatically adjusts the balance of branch pipeline flow, accurately stabilizes the flow, and has functions such as opening indication, locking, and closing. Suitable for flow control of non corrosive media such as heating and air conditioning. By running a one-time adjustment, the system flow can automatically remain constant at the required set value.

Product technical parameter:

Diameter nominal DN(mm)		50～300
Pressure nominal PN(MPa)		1.6
Pressure test Ps (MPa)	Strength test (Water)	2.4
	Sealing test (Water)	1.76
Raw material		Ductile iron
Sealing		NBR, EPDM
Construction type		Pass-through type
Medium applicable		Water
Working temperature		0-80℃
Connection way		Flange
Driven method		Automatic
Application field		Hydraulic engineering, HVAC, Water supply

Product features:

1. Automatic adjustment: It can automatically adjust the valve opening according to the pressure changes inside the pipeline system to achieve dynamic balance of flow and ensure stable flow of different branches.

2. Dynamic response: The self operated dynamic flow balance valve can quickly respond to changes in fluid flow inside the pipeline system, adjust the valve opening in a timely manner, and maintain the balance state of the system.

3. Independent work: It does not require external power or control signals, and relies entirely on pressure changes inside the pipeline to achieve automatic adjustment, with the characteristic of independent work.

4. Improve system efficiency: By dynamically balancing the flow of pipeline systems, self operated dynamic flow balancing valves can improve the operational efficiency of the system and reduce energy consumption.
