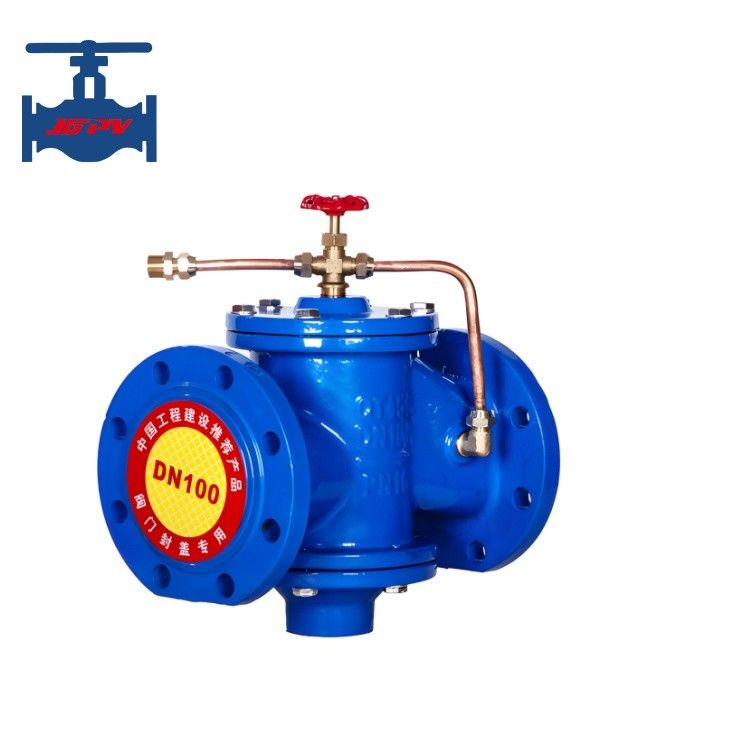

Flange Connection Adjustable Differential Pressure Control Valve Hydraulic

Ductile Iron Flange Connection Adjustable Differential Pressure Control Valve

Product introduction:

The ZY47F series adjustable differential pressure control valve is a hydraulic condition balancing valve that automatically maintains a constant pressure difference. The valve body is composed of a dual channel automatic regulating valve that can change flow resistance and a controller separated by a diaphragm into two independent chambers. One chamber is connected to the return water pipeline and is installed on the return water pipeline during use. The channel automatic regulating valve is an actuator, and its action power comes from the pressure difference change between the supply pressure P1 and the return pressure P2. The controller is a pressure difference comparator, whose pressure difference is selected based on the resistance of the controlled heating system, and the spring reaction force on the return water side is used to balance the pressure difference between the supply and return water. When some users of the controlled heating system adjust the room temperature. When the resistance increases or decreases, it will cause a change in the circulating flow rate until the pressure on both sides of the diaphragm is balanced, causing the controlled system to automatically adjust internally.

Product technical parameter:

Product features:

1. The adjustable differential pressure control valve does not require external energy, but relies on the pressure changes of the controlled medium for automatic adjustment;
2. The valve has a dual resolution structure, with a small valve stem imbalance force and a compact structure, which can maintain a constant pressure difference in the controlled system;

3. This valve supports internal self adjustment of the controlled system and can reduce the fluctuation of external network pressure difference;

4. This valve adopts an advanced stepless pressure regulation structure, with adjustable control pressure difference ratio of 25:1;

5. This valve can automatically eliminate the residual pressure head of the pipeline network and the flow deviation caused by pressure fluctuations, with a constant user inlet and outlet pressure difference, and has the function of automatically eliminating blockages.
