Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: FA49H-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD69.9/Set - 299.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Function: |
Water Hammer Shock Waves Prevention |
Product Application: |
Water Supply System |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Nomal Pressure |
Power: |
Hydraulic |
Manufacturing Craft: |
Casting |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Explosion Proof Wave Safety Valve |
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Function: |
Water Hammer Shock Waves Prevention |
Product Application: |
Water Supply System |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Nomal Pressure |
Power: |
Hydraulic |
Manufacturing Craft: |
Casting |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Explosion Proof Wave Safety Valve |

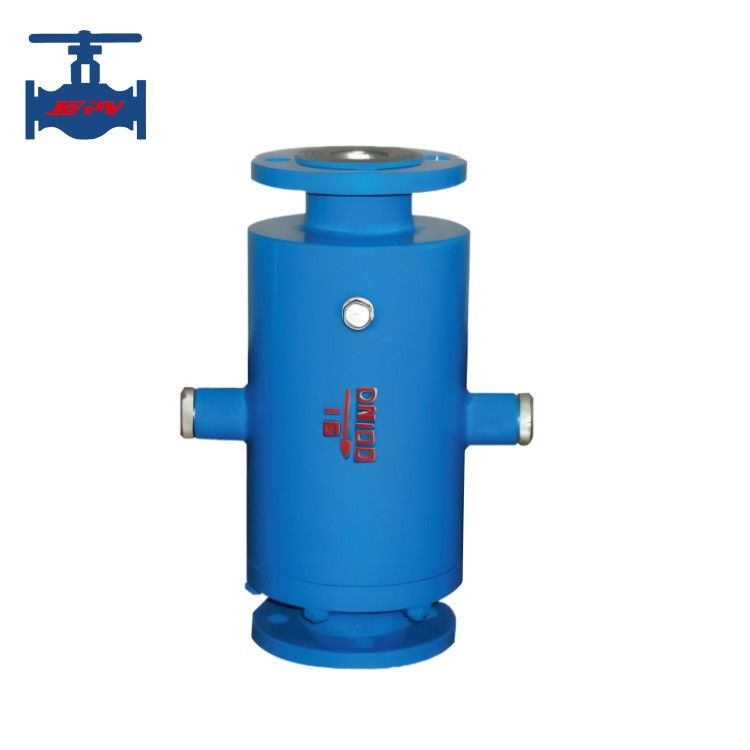

Cast Steel Stainless Steel Flanged Connection Explosion-Proof Wave Safety Valve
Product introduction:
FA49H series explosion-proof wave safety valve is a water safety valve that can both eliminate and block water hammer shock waves. It is a product composed of multiple sets of safety valves and has a buffer spring structure, which cannot be achieved by a single safety valve. When a water hammer is formed but does not cause damage, the buffer spring dissolves the water hammer. When the formed water hammer reaches enough to damage the subsequent equipment, the safety valve group takes effect. The pressure inside the valve chamber is discharged from the valve body, and the equipment behind the wave valve is protected from the water hammer impact, ensuring the normal operation of the system and the normal operation of the facilities.
FA49H series explosion-proof wave safety valve is installed at the head of the water supply engineering pipeline and the civil defense system, combining wave blocking and wave attenuation to prevent the water hammer shock wave from entering the system water supply engineering along the pipeline, thereby eliminating the shock wave that damages the water hammer and protecting the normal operation and safety protection of the system facilities.
Product technical parameter:
| Pressure nominal(MPa) | 1.0～1.6Mpa | |
| Port size | DN50-DN200 | |
| Working pressure(MPa) | 0.2-0.6 | |
| Valve body working working (MPa) | 1．5 | |
| Strength test pressure | 2.5 | |
| Medium application | Water | |
| Working temperature | O～80℃ | |
| Eliminating efficiency | 90% | |
| Parts and raw material | Body | WCB |
| Seat | Stainless steel | |
| Spring | Stainless steel | |
| Safety valve |
WCB |
|
| Drain valve | WCB | |
Product features:
1. Safe and reliable, there is no need to re calibrate after detonation, and it can be used continuously with a long service life.
2. The valve body adopts a full channel, streamlined design, with low fluid resistance and high flow rate.
3. The connection between the valve body, valve cover, and piston cylinder is double sealed by a sealing gasket and a sealing ring, with no external leakage.
4. Valve body, piston cylinder, and piston dual guidance, smooth and reliable movement, perfect combination to improve product safety, reliability, and extend service life.
5. Detachable valve seat, ingenious structure, innovative concept, and convenient maintenance and replacement.
