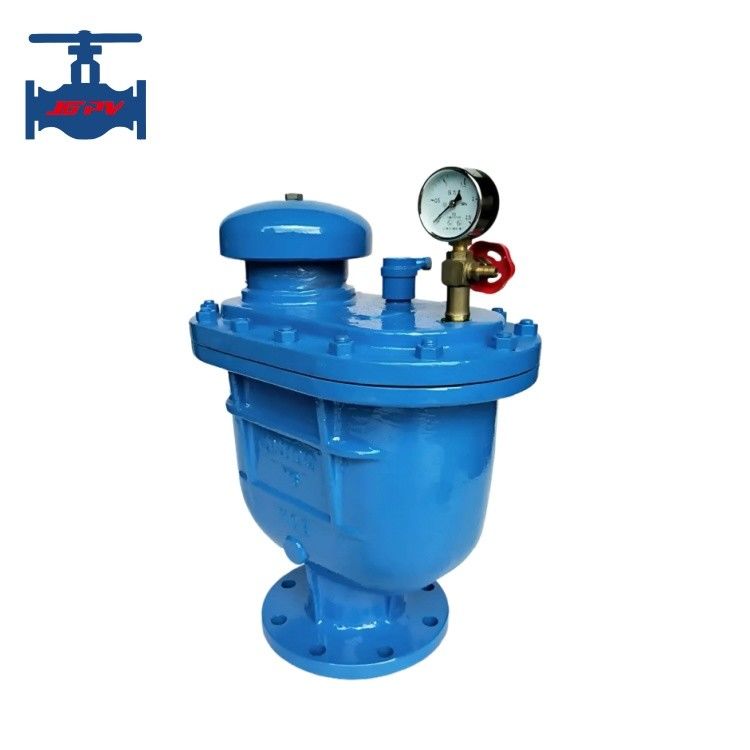

Full Pressure High Speed Dual Port Quick Exhaust Valve Barrel Shape

Ductile Iron Flanged Full Pressure High-Speed Dual Port Exhaust Valve

Product introduction:

The P43X series quick exhaust valve is in a barrel shape, and the valve trim includes stainless steel float, valve stem, and valve disc. This valve is installed at the pump outlet or in the water distribution pipeline to remove air accumulated in the pipeline and improve the efficiency of the pipeline and water pump. When negative pressure is generated in the pipeline, this valve quickly sucks in external air to prevent damage to the pipeline due to negative pressure. When water is injected into the pipeline, the valve disc is in the open position for a large amount of exhaust. When the air is exhausted, the valve is filled with water, the float rises and drives the valve disc to close, stopping exhaust. When the water in the pipeline is transported normally, if a small amount of air accumulates in the valve to a considerable extent, the water level inside the valve drops, and the air is discharged through the small hole. When the water pump stops, the water flow in the pipe becomes empty or negative pressure is generated in the pipe. At this time, the plug is opened to suck in air, ensuring the safety of the pipeline.

Product technical parameter:

Product features:

1. P43X series quick exhause valve belongs to full pressure high-speed dual port exhaust valve, which is the most advanced cylinder type exhaust valve in China.

2. For the gas in the pipeline, regardless of whether there are multiple water columns, gas columns are staggered, and whether there is pressure or not, it can be continuously discharged at high speed.

3. The floating ball does not block the top of exhaust port, and there is no problem of jamming. A small amount of gas can be discharged through micropores. When the pipeline experiences negative pressure, gas can be injected to prevent gas contamination and buffer water hammer life, relieving the risk of new pipeline test runs.

4. It can effectively reslove the difficulties of exhaust to reduce urban pipeline explosion accidents, reducing resistance and energy saving, reducing pressure oscillation, and improving the safety and reliability of the real water supply series and various equipment.
