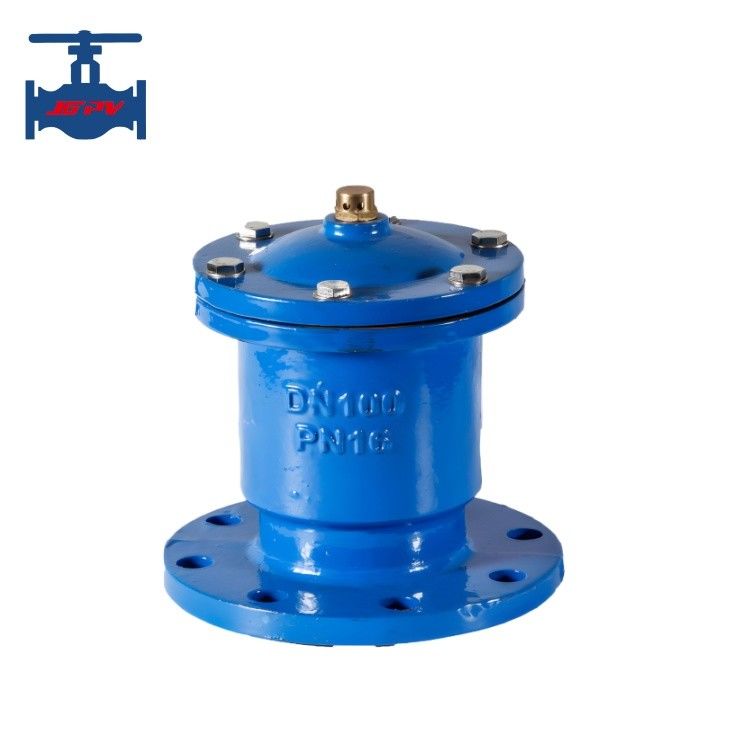

Cylindrical Flanged Automatic Quick Air Exhaust Valve Long Service Life

Name: Cylindrical Flanged Automatic Quick Air Exhaust Valve Long Service Life
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: P41X-JGPV
Price: 20.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: P41X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD13.9/Set - 29.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Flanged Air Exhaust Valve, Automatic Quick Air Exhaust Valve, Flanged Automatic Exhaust Valve


Standard Or Non-standrd:	Standard	Application:	General
Product Function:	Quick Air Vent	Product Application:	Water Supply System
Working Temperature:	Normal Temperature	Pressure Application:	Nomal Pressure
Power:	Hydraulic	Manufacturing Craft:	Casting
Test Standard:	Strength And Sealing Test	Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Standard Or Non-standrd:	Standard
Application:	General
Product Function:	Quick Air Vent
Product Application:	Water Supply System
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Cylindrical Flanged Automatic Quick Air Exhaust Valve Long Service Life

Ductile Iron Flanged Automatic Quick Air Exhaust Valve

Product introduction:

The valve body of the P41X automatic exhaust valve is cylindrical, with stainless steel floating balls and plug heads inside. The automatic exhaust valve is used at the highest point of the pipeline or in areas with closed air. It has three functions: discharging a large amount of air from the pipeline, small amount of exhaust during system operation, and high-speed introduction of external air. It can unclog the pipeline and ensure its normal operation. In case of emergency situations such as power outage or pump shutdown, negative pressure inside the pipeline may cause pipeline vibration or rupture. The exhaust valve should be opened in a timely manner to ensure pipeline safety.

The P41X automatic exhaust valve is mainly used at the outlet of the water pump and in the water supply and drainage pipeline to eliminate the air accumulated in the pipeline. It makes automatic air exhaust and automatic air replenishment, improving the efficiency of the water pipe and pump, improving the drainage efficiency of the water transmission pipeline, reducing the drainage cost. In case of negative pressure in the pipeline, the exhaust valve can quickly suck in air to avoid damage caused by negative pressure in the pipeline, improve the efficiency of the water transmission equipment, and protect the pipeline from deformation and rupture. It is an essential safety equipment for pipelines.

Product technical parameter:

Pressure nominal		1.0MPa
Port size		DN50-200mm
Strength test standard		1.5MPa
Sealing test standard		1.1MPa
Parts and material	Body	Ductile iron
	Bonnet	Ductile iron
	Float ball	Stainless steel
	Level support	Stainless steel
	Stem	Bronze
	Plug	Bronze
	Seat	Bronze
Medium application		Water and oil etc non corrosive mediums
Working temperature		0-80℃
Connection		Flange connection

Product features:

1. Discharge gas from the pipeline to reduce resistance and save energy.
2. Automatically adjust pressure to prevent pipeline rupture
3. The exhaust capacity is twice that of a dual port exhaust valve
4. Stainless steel bracket with long service life.
