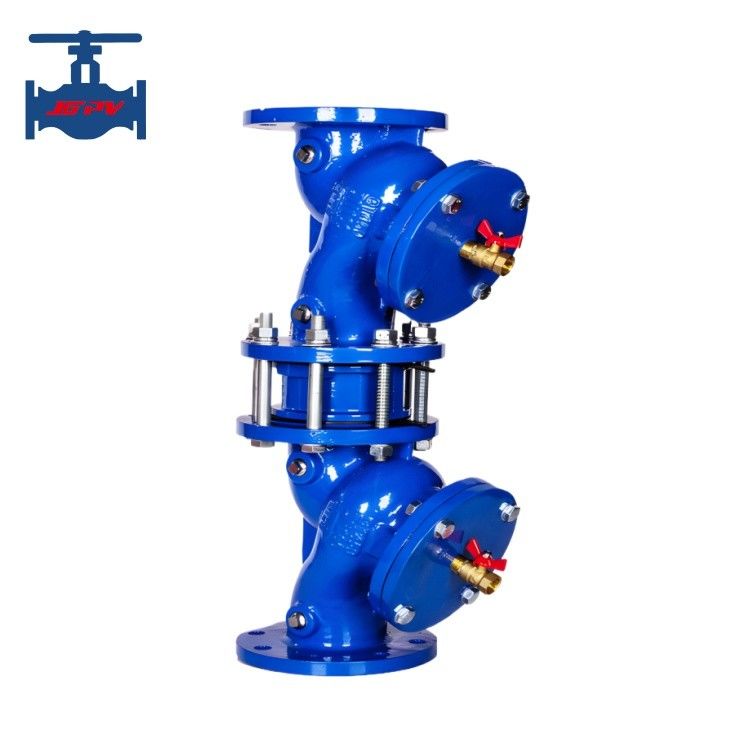

Ductile Iron Flanged Backflow Preventer Anti Pollution Isolation Valve

Name: Ductile Iron Flanged Backflow Preventer Anti Pollution Isolation Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: HS41X-JGPV
Price: 516.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: HS41X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD73.9/Set - 959.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Flanged Backflow Preventer, Backflow Preventer Anti Pollution, Anti Pollution Isolation Valve


Name:	Anti Pollution Isolation Valve	Standard Or Non-standrd:	Standard
Application:	General	Product Function:	Medium Backflow Prevention
Product Application:	Water Supply System	Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure	Power:	Hydraulic
Manufacturing Craft:	Casting	Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months

Name:	Anti Pollution Isolation Valve
Standard Or Non-standrd:	Standard
Application:	General
Product Function:	Medium Backflow Prevention
Product Application:	Water Supply System
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months

Ductile Iron Flanged Backflow Preventer Anti Pollution Isolation Valve

Ductile Iron Flanged Backflow Preventer Anti Pollution Isolation Valve

Product introduction:

The HS41X backflow preventer, also named as anti pollution isolation valve, it is designed to prevent serious pollution caused by backflow in the current water supply network; Our unit has introduced advanced foreign technology and independently developed a new hydraulic control valve that is safe, reliable, and prevents backflow pollution of drinking water, to ensure the hygiene and safety of drinking water and fill the gap in the domestic valve field. The first and second stage check valves mainly consist of valve body, valve cover, valve, sealing gasket, spring, etc. The ordinary type is composed of two check valves connected in series, without safe drainage

Product technical parameter:

Pressure nominal		1.6MPa
Port size		DN50-400mm
Strength test standard		2.4MPa
Sealing test standard		1.76MPa
Parts and material	Body	Ductile iron, cast steel, stainless steel
	Bonnet	Ductile iron, cast steel, stainless steel
	Disc	Cast steel, stainless steel
	Stem	Bronze, 2Cr13
	Diaphragm	NBR
	Diaphragm plate	Cast steel, stainless steel
	Spring	Stainless steel
Medium application		Water and oil etc non corrosive mediums
Working temperature		0-80℃
Connection		Flange connection

Product features:

The structure of HS41X with filtering and anti fouling isolation valve has the characteristics of rationality, convenient use, strong sealing performance, durability, and beautiful appearance. Widely used in sectors such as electricity, metallurgy, petroleum, chemicals, gas, urban construction, papermaking, textiles, pharmaceuticals, food, ships, water supply and drainage, energy, drilling, etc.
