Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: H142X-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD65.9/Set - 469.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Function: |
Water Level Automatic Control |
Product Application: |
Water Supply System |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Nomal Pressure |
Power: |
Hydraulic |
Manufacturing Craft: |
Casting |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Hydraulic Water Control Valve |
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Function: |
Water Level Automatic Control |
Product Application: |
Water Supply System |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Nomal Pressure |
Power: |
Hydraulic |
Manufacturing Craft: |
Casting |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Hydraulic Water Control Valve |

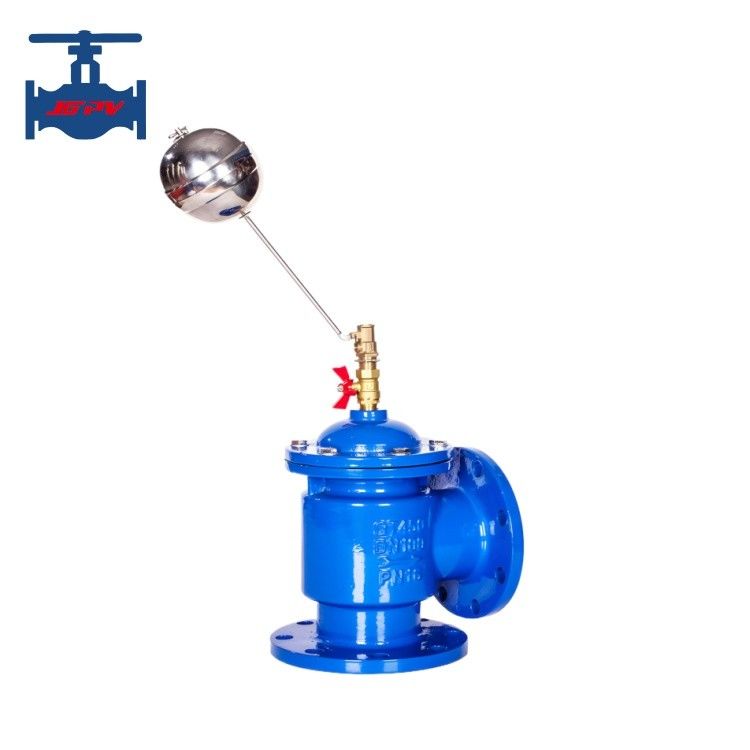

Ductile Iron Automatic Hydraulic Water Level Control Valve
Product introduction:
The H142X hydraulic water level control valve is a hydraulic control valve that automatically controls the liquid level of water tanks and towers. When the water surface drops beyond the preset value, the float valve opens, the pressure in the upper chamber of the piston decreases, and a pressure difference is formed between the upper and lower parts of the piston. Under this pressure difference, the valve disc opens for water supply operation; When the water level rises to the preset height, the float valve closes, and the pressure in the chamber on the piston continuously increases, causing the valve disc to close and stop supplying water. This reciprocating automatic control of the liquid level at the set height achieves automatic water supply function. This product is suitable for automatic water supply systems of various water tanks (pools) and towers in industrial and mining enterprises and civil buildings. It can also be used as a control valve for circulating water supply in atmospheric boilers. Hydraulic water level control valves that do not require electricity, and hydraulic water level control valves that do not require guarding.
Product technical parameter:
| Pressure nominal | 1.6MPa | |
| Port size | DN40-300mm | |
| Strength test standard | 2.4MPa | |
| Sealing test standard | 1.76MPa | |
| Parts and material | Body | Ductile iron, cast steel, stainless steel |
| Bonnet | Ductile iron, cast steel, stainless steel | |
| Disc | Cast steel, stainless steel | |
| Diaphragm | Nylon reinforced rubber | |
| Spring | Stainless steel | |
| Medium application | Clean water | |
| Working temperature | 0-80℃ | |
| Connection | Flange connection | |
Product features:
1. Using hydraulic principles for control, the structure is novel and reasonable.
2. Work steadily and reliably. Within the specified operating pressure range, it can ensure no water hammer impact.
3. Lightweight and small in size.
4. Easy installation and maintenance.
