Product introduction:

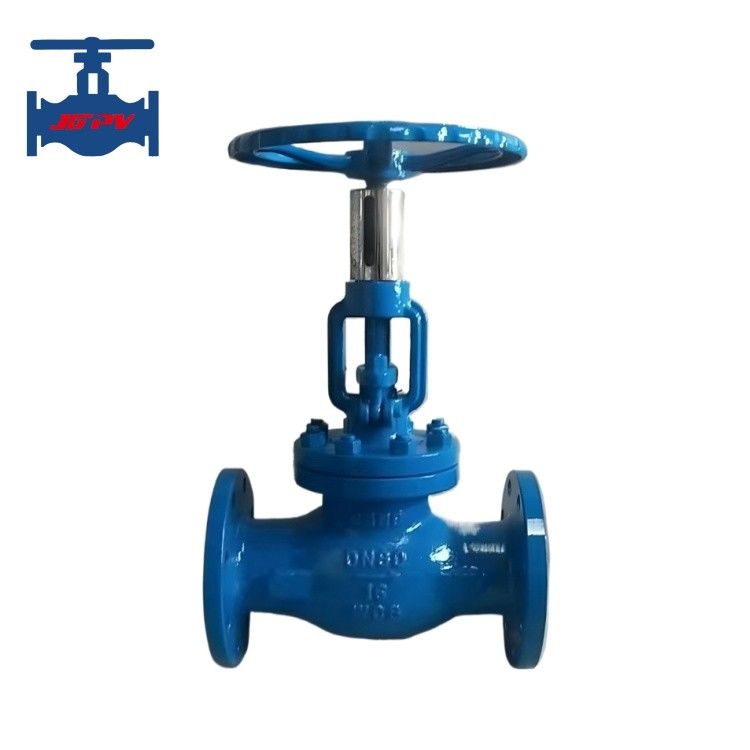

The T40 series manual regulating valve is only suitable for regulating flow on steam or hot water pipelines with nominal pressure ≤ 1.6MPa and ≤ 2.5MPa and medium temperature t ≤ 200 ℃ and ≤ 350 ℃. Rotate the handwheel clockwise to close the manual regulating valve. At this time, the valve stem drives the valve disc to lower, until the two conical sealing surfaces come into close contact and close the pipeline tightly. The manual regulating valve is the best energy-saving product for urban centralized heating or regional heating, with a focus on regulating flow rate.
Manual regulating valves are mainly used in urban centralized heating, regional heating, circulating water engineering, thermal power plant pipeline network, and refrigeration and air conditioning engineering. They have the functions of cut-off, throttling, and flow regulation, and can replace throttling orifice plates. They are a throttling device that can change the aperture.

Product technical parameter:

Product features:

1. T40H series manual regulating valve can efficiently improve the heating supply situation, all branch lines and heating points that use manual control valves can adjust their flow according to the design conditions, achieving good temperature conditions. This type of control valve has better regulation performance than gate valves and globe valves, and it has approximate linear regulation performance. Therefore, the uneven distribution of heating and cooling in various heating buildings has been effectively improved.
2. T40H series manual regulating valve can achieve energy saving: Due to temperature and pressure imbalance in the heating pipeline network, some branches have excessive flow, resulting in high temperatures in some buildings. Users have to open windows to achieve the goal of energy conservation.
3. Improving the hydraulic conditions of network management: The manual regulating valve can be controlled according to the rated flow rate, reducing the excessive flow rate of network management and improving the degree of deterioration of the original water conditions to a certain extent.
