Metal Sealing Ductile Iron Swing Check Valve For Water Pipeline BS5153 Standard

Name: Metal Sealing Ductile Iron Swing Check Valve For Water Pipeline BS5153 Standard
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: H44X-16Q
Price: 269.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: H44X-16Q

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD39.9/Set - 499.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Ductile Iron Swing Check Valve, Metal Sealing Swing Check Valve, Ductile Iron BS5153 Check Valve


Standard Or Non-standard:	Standard	Application:	General
Standard:	GB DIN	Medium Type:	Water Pipeline Use
Function:	Water Flowback Prevention	Pressure Application:	Low Pressure
Manufacturing Craft:	Casting	Body Material:	Ductile Iron
Port Size:	DN50-DN300	Quality Warranty:	18 Months
Name:	Swing Check Valve

Standard Or Non-standard:	Standard
Application:	General
Standard:	GB DIN
Medium Type:	Water Pipeline Use
Function:	Water Flowback Prevention
Pressure Application:	Low Pressure
Manufacturing Craft:	Casting
Body Material:	Ductile Iron
Port Size:	DN50-DN300
Quality Warranty:	18 Months
Name:	Swing Check Valve

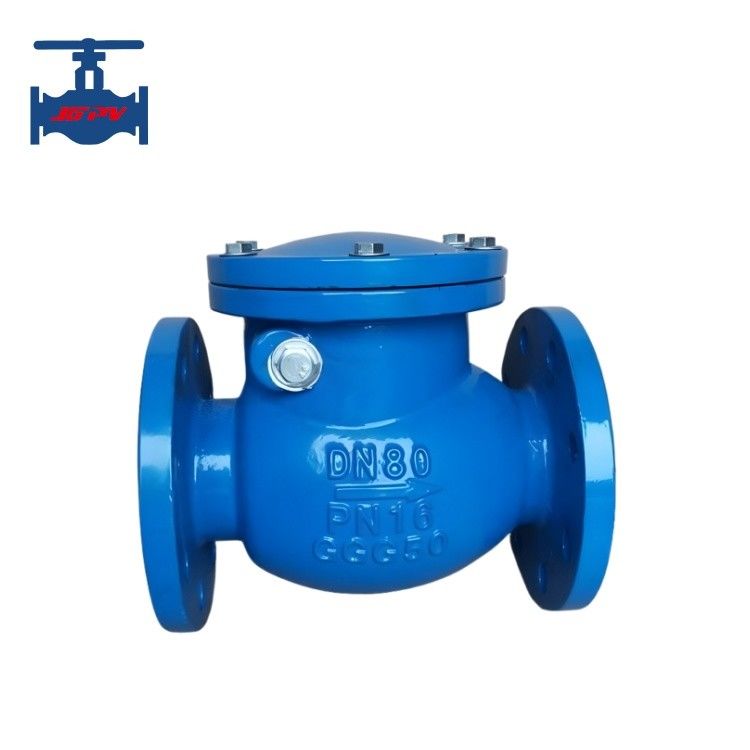

Metal Sealing Ductile Iron Swing Check Valve For Water Pipeline BS5153 Standard

BS5153 Standard Ductile Iron Metal Sealing Swing Check Valve For Water Pipeline Use

Product introduction:

The H44H series metal sealing check valve is mainly suitable for horizontal installation in water supply and drainage systems. It can be installed at the outlet of the water pump to prevent backflow and water hammer damage to the pump, it can also be installed on the bypass pipe of the inlet and outlet pipes of the reservoir to prevent water from flowing back into the water supply system.

Check valves are generally suitable for clean medium and are not suitable for the mediums containing solid particles and high viscosity. The check valve is installed at the outlet of the water pump for shut-off and check purposes. It is an ideal equipment to eliminate the damage of water hammer to the water pump unit and pipeline network. When there is a sudden power outage, the valve can automatically close to protect the safety of the water pump and pipeline.

Product technical paramters:

Type Number:		H44H-16Q
Nominal Pressure PN(MPa)		1.6
Nominal Diameter DN(mm)		50～300
Test pressure (MPa)	Strength (water)	2.4
	Sealing (water)	1.76
Raw material		QT450
Medium suitable:		Water
Working temperature		≤80℃
Connection type		Flange
Operational method		Auto

Product features:

1. High reliability: Check valves have a simple structure, easy maintenance, good sealing and reliability, and are less prone to malfunctions.

2. Energy saving: relying on the pressure difference of the material itself as the medium to achieve opening and closing, without the need for additional power equipment, can save energy.

3. High safety: Check valves can effectively prevent accidents such as medium backflow and pipeline explosions, playing a role in ensuring equipment and personal safety.

4. Economical and practical: Check valves have low cost, simple operation, long service life, and are widely used in various media flow pipeline systems
