Product Details
Place of Origin: China
Brand Name: JGPV
Model Number: Z45X-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD29.9/Set - USD1299.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve |
Purpose: |
Water Pipeline Opening And Closing |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Normal Pressure |
Manufacturing Craft: |
Casting |
Body Material: |
Ductile Iron |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Quality Warranty: |
18 Months |
Name: |
Non Rising Stem Gate Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve |
Purpose: |
Water Pipeline Opening And Closing |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Normal Pressure |
Manufacturing Craft: |
Casting |
Body Material: |
Ductile Iron |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Quality Warranty: |
18 Months |
Name: |
Non Rising Stem Gate Valve |

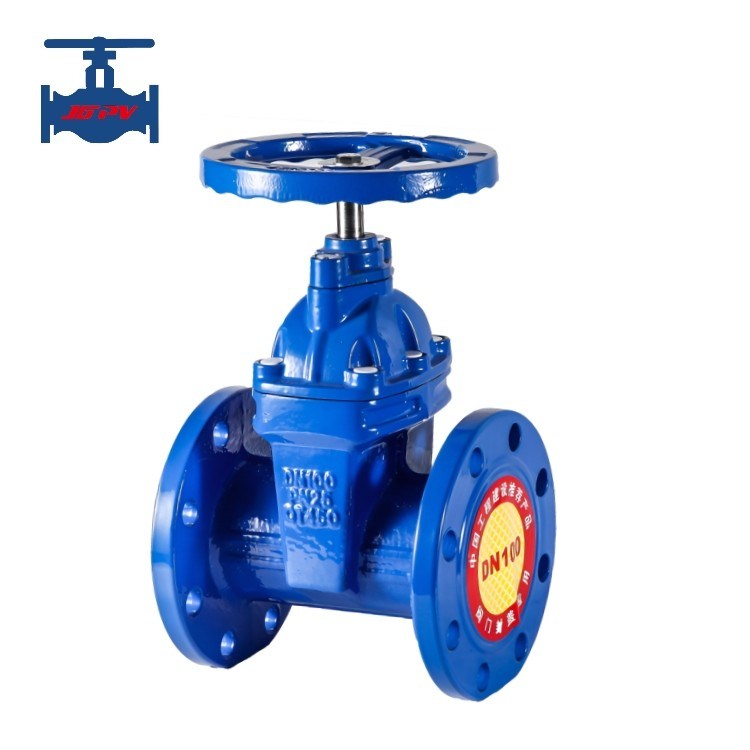

Ductile Iron Non-Rising Stem Resilient Seated Flanged Gate Valve
Product introduction:
Ductile Iron Non-Rising Stem Resilient Seated Flanged Gate Valve is a gate valve with soft seal, it is the best substitute product of traditional gate valve, can achieve sound sealing performance by the compensation function of micro deformation of elastic gate valve. As it is superior for its light and flexible switch, reliable sealing, excellent elastic memory and long service life, the valve can be widely applied to fluid pipeline, including tap water, polluted water, buildings, food, electricity, medicine, metallurgy and light textile, as adjustment and closure equipment.
Product technical paramters:
| Diameter nominal DN (mm) | 40～600 | |
| Pressure nominal PN (MPa) | 1.0～2.5 | |
| Test standard | Strength test (MPa) | 1.5 times of pressure nominal |
| Sealing test (MPa) | 1.1 times of pressure nominal | |
| Main Components | Body | Ductile iron |
| Bonnet | Ductile iron | |
| Stem | 2Cr13 | |
| O type ring | NBR | |
| Seal | NBR | |
| Gland | Ductile iron | |
| Disc | Ductile iron wrapped by NBR | |
| Medium suitable | Water | |
| Working temperature | 0℃～80℃ | |
| Connection type | Flange | |
Product features:
1. Low flow resistance, valve body internal medium channel is straight, medium into a straight line flow, flow resistance is small.
2, Save manpower for opening and closing compared with the globe valve, because whether open or closed, the movement direction of the gate is perpendicular to the direction of the flow side of the medium.
3. High height and long opening and closing time.The opening and closing stroke of the gate is larger, and the drop is carried out through the screw rod.
4, Low water hammer phenomenon due to long shutdown time.
5, Two ways direction, medium can flow to both sides in any direction, easy to install.
6. The structural length (the distance between the two connecting ends of the shell) is small.
