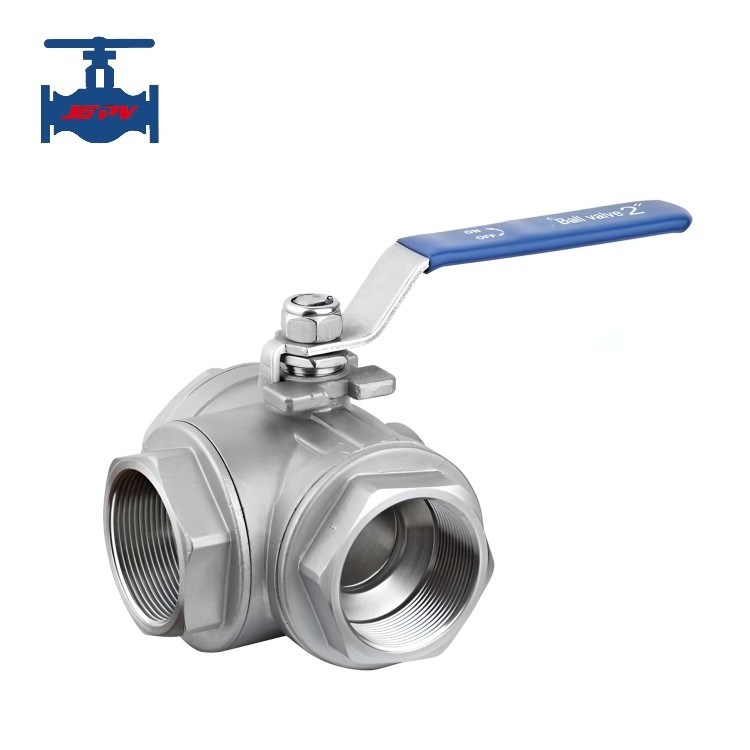

3 Way Stainless Steel Ball Valve 1000WOG T Type / L Type BSP And NPT Threaded Ball Valve

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Q14F-16P

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD19.9/Set to USD129.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                3 Way Stainless Steel Ball Valve 1000WOG, BSP Threaded Ball Valve 3 Way, NPT Threaded Ball Valve Stainless Steel


Standard Or Non-Standard:	Standard	Application:	General
Product Function:	Fluid Direction Adjustment	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure	Medium Application:	Water, Steam, Oil And Corrosive Mediums
Port Size:	DN15-DN80	Connection:	Thread
Quality Warranty:	18 Months	Test Standard:	Strength Test, Sealing Test And Other Client Needs
Name:	Screw End Ball Valve

Standard Or Non-Standard:	Standard
Application:	General
Product Function:	Fluid Direction Adjustment
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure
Medium Application:	Water, Steam, Oil And Corrosive Mediums
Port Size:	DN15-DN80
Connection:	Thread
Quality Warranty:	18 Months
Test Standard:	Strength Test, Sealing Test And Other Client Needs
Name:	Screw End Ball Valve

3 Way Stainless Steel Ball Valve 1000WOG T Type / L Type BSP And NPT Threaded Ball Valve

1000WOG Stainless Steel T Type And L Type Three-Way BSP And NPT Threaded Ball Valve

Product introduction:

Three way ball valves can adjust flow direction efficiently, and it is available in T and L shapes. T-shaped pipes can connect and cut off the third channel of three orthogonal pipes, playing a role in diversion and convergence. The L-three-way ball valve type can only connect two orthogonal pipelines and cannot maintain the interconnection of the third pipeline at the same time. It only plays a distribution role.

Product technical parameters:

Nominal Diameter DN (mm)		15-50
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
	Enclose (Water)	1.76
Main Components	Valve body	Stainless steel
	Ball	Stainless steel
	Seat	PTFE
	Axle	Stainless steel
Working temperature		≤120℃
Medium suitable		Water, steam and oil
Connection		BSPT, NPT type
Flow direction		T type and L type
Driven method		Single acting and double acting pneumatic actuator

Product features:

1. Simple structure: Compared to other complex valves, three-way ball valves have a relatively simple structure and are easy to operate and maintain.
2. High reliability: The three-way ball valve is mainly composed of a sphere, a valve seat, and an operating rod, which has high sealing performance and prevents fluid leakage.
3. Good corrosion resistance: The three-way ball valve can be made of various materials, such as stainless steel, cast iron, copper, etc. It can withstand various chemical media and has good corrosion resistance.
4. Easy adjustment: By turning the operating lever, the direction and flow rate of the fluid can be controlled, achieving different operations such as mixing or splitting.
5. Diverse specifications: The specifications of three-way ball valves are diverse, which can meet the needs of different pipelines
