Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: Z41X-16Q
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD28.9/pc - USD1499/pc
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 500pcs per month
Standard Or Non-standard: |
Standard |
Product Features: |
Water Pipeline Control Valve Product |
Purpose: |
Open And Shut Off Pipeline |
Structure: |
Gate |
Manufacturing Craft: |
Casting |
Body Material: |
Cast Iron, Cast Iron |
Sealing Type: |
Soft Seal |
Port Size: |
DN40-DN1200 |
Test Standard: |
Strength And Sealing Test, And Client Choose |
Quality Warranty: |
18 Months |
Name: |
Rising Stem Gate Valve |
Standard Or Non-standard: |
Standard |
Product Features: |
Water Pipeline Control Valve Product |
Purpose: |
Open And Shut Off Pipeline |
Structure: |
Gate |
Manufacturing Craft: |
Casting |
Body Material: |
Cast Iron, Cast Iron |
Sealing Type: |
Soft Seal |
Port Size: |
DN40-DN1200 |
Test Standard: |
Strength And Sealing Test, And Client Choose |
Quality Warranty: |
18 Months |
Name: |
Rising Stem Gate Valve |

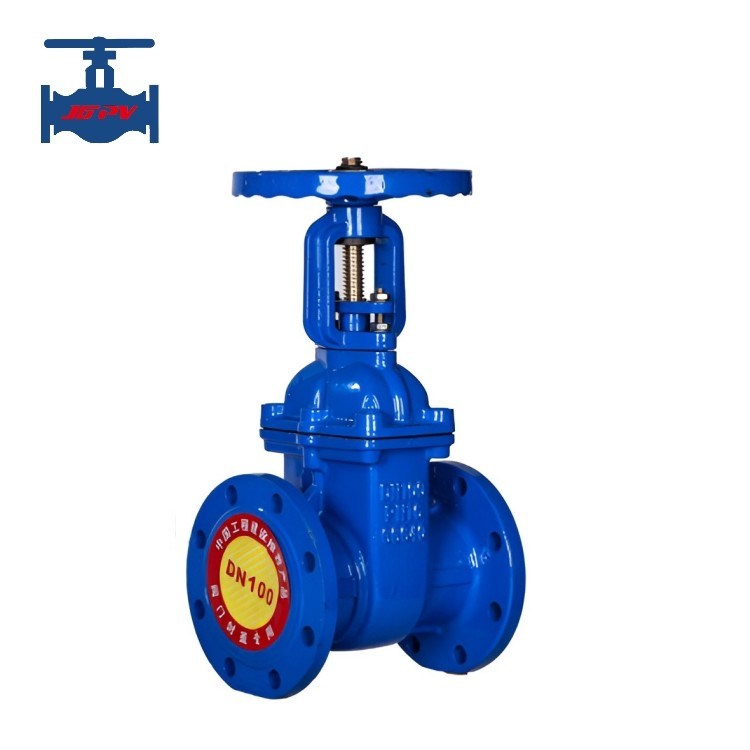

Ductile Iron RS Rising Stem Resilient Seated Gate Valve For Water Pipeline Use
Product Introduction:
A gate valve is like a gate, with the movement direction perpendicular to the direction of the fluid, and gate valve can only be fully open and closed, not adjusted or throttled.
Gate valve with following working principle: turn the hand wheel to open and close the valve plate connected to the stem by the hand wheel and stem thread advance, back, lift or drop, very easy operation.
Valve gate with two sealing surface, resilient seated gate valve sealing surface is made into a gate that can produce slight deformation to improve its processability and compensate for the deviation of the sealing surface angle during the processing. This is the reason why we we call it as a resilient seated gate valve.
Product specification parameters:
| Nominal Diameter DN(mm) | 40～600 | |
| Nominal Pressure PN(MPa) | 1.0～1.6 | |
| Main Components | Valve body and bonnet | Ductile iron |
| Stem | 2Cr13 | |
| “O”ring | NBR | |
| Seal | NBR | |
| Gland | Ductile iron | |
| Disc | Ductile iron wrapped by NBR | |
| Medium suitable | Water | |
| Working temperature | 0℃～120℃ | |
| Connection type | Flange | |
Product features:
Product advantages:
1. Simple structure: the rising stem gate valve is composed of a simple body, gate plate, stem, etc., which is easy to install and maintain.
2. Good sealing performance: the sealing performance between the gate and valve seat is good, which can effectively prevent medium leakage.
3. Long service life: the material and structural design used in the rising stem gate valve give it a longer service life.
