Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: Z45X-16P
Payment & Shipping Terms
Minimum Order Quantity: 10 sets
Price: USD85.9/pc - USD1799/pc
Packaging Details: Plywood box safety packing
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs per month
Standard Or Non-standard: |
Standard |
Product Features: |
Water Pipeline Use |
Purpose: |
Open And Shut Off Pipeline |
Structure: |
Gate |
Manufacturing Craft: |
Casting |
Body Material: |
CF8 |
Sealing Type: |
Soft Seal |
Port Size: |
DN50-DN400 |
Test Standard: |
Strength & Sealing Test, Support Client Choose |
Quality Warranty: |
18 Months |
Name: |
Non-Rising Stem Gate Valve |
Standard Or Non-standard: |
Standard |
Product Features: |
Water Pipeline Use |
Purpose: |
Open And Shut Off Pipeline |
Structure: |
Gate |
Manufacturing Craft: |
Casting |
Body Material: |
CF8 |
Sealing Type: |
Soft Seal |
Port Size: |
DN50-DN400 |
Test Standard: |
Strength & Sealing Test, Support Client Choose |
Quality Warranty: |
18 Months |
Name: |
Non-Rising Stem Gate Valve |

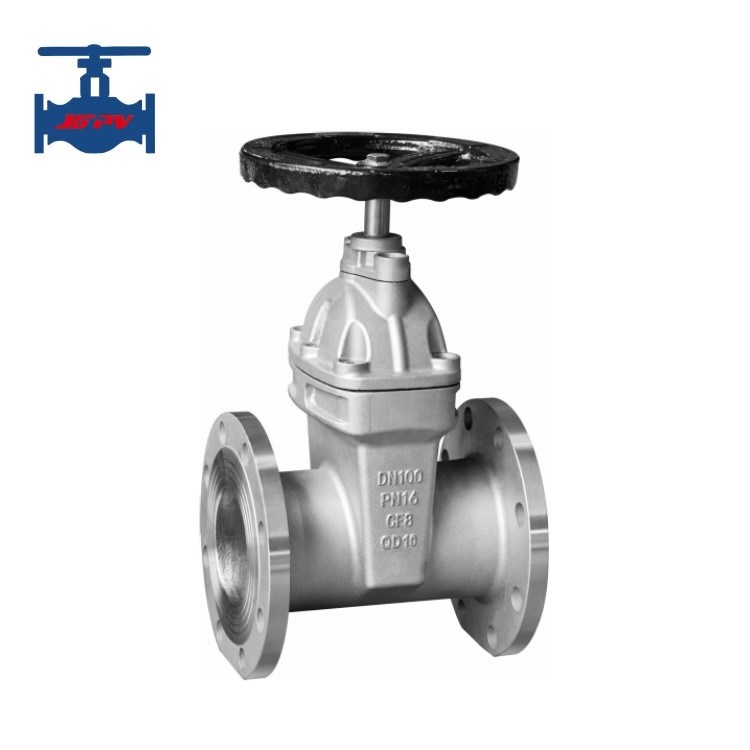

CF8 NRS Non Rising Stem Gate Valve For Water Pipeline Use
Product Introduction:
A gate valve is like a gate, with the movement direction perpendicular to the direction of the fluid, and gate valve can only be fully open and closed, not adjusted or throttled.
Gate valve with following working principle: turn the hand wheel to open and close the valve plate connected to the stem by the hand wheel and stem thread advance, back, lift or drop, very easy operation.
stainless steel gate valves with meticulous and wide raw material selection in accordance with relevant domestic and international standards, and the overall quality of the materials is high, stainless steel 304 and stainless steel 316 are most commonly used raw material for stainless steel gate valve products.
Z45X-16P type gate valve is a gate valve widely used in industrial pipeline systems, mainly for cutting off or connecting media in pipelines. This valve has the characteristics of simple structure, easy operation, and good sealing performance, and is suitable for various media such as water, steam, and oil.
Product specification parameters:
Product specification parameters:
| Type Number: | Z45X-16P | |
| Nominal Diameter DN(mm) | 50～400 | |
| Nominal Pressure PN(MPa) | 1.6 | |
| Test pressure (MPa) | Strength (water) | 2.4 |
| Closure (water) | 1.76 | |
| Main Parts | Valve body | Stainless steel CF8 |
| Valve bonnet | Stainless steel CF8 | |
| DISC | 2Cr13+NBR | |
| Hand wheel | HT200 | |
| Yoke nut | 2Cr13 | |
| Medium applicable | Water, Sea water, sewage and oil etc. | |
| Working temperature | ≤80℃ | |
| Connection type | Flange | |
Product features:
1. Compact structure: Z45X-16P gate valve adopts an integral structure, with small volume, light weight, and easy installation and maintenance.
2. Good sealing performance: The valve adopts a soft sealing structure, and the sealing surface is made of rubber or polytetrafluoroethylene (PTFE) material, which has good sealing performance and can effectively prevent medium leakage.
3. Easy to operate: The valve can be opened and closed flexibly, and can be operated through a handwheel, electric or pneumatic device to adapt to different working conditions.
4. Strong corrosion resistance: The valve body and valve cover are usually made of stainless steel (such as 304, 316L, etc.), which has good corrosion resistance and is suitable for corrosive media.
5. Wide application range: Z45X-16P gate valve is suitable for working conditions with a working pressure of 1.6MPa (16bar) and a working temperature range of -20 ℃ to 120 ℃. It is widely used in industries such as water treatment, chemical, petroleum, metallurgy, etc.
