Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: Z45H-16P
Payment & Shipping Terms
Minimum Order Quantity: 10 sets
Price: USD61.9/pc - USD12599/pc
Packaging Details: Plywood box safety packing
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs per month
Standard Or Non-standard: |
Standard |
Product Features: |
Industrial Pipeline Control Valve |
Purpose: |
Open And Shut Off Pipeline |
Structure: |
Gate |
Manufacturing Craft: |
Casting |
Body Material: |
WCB |
Sealing Type: |
Hard Seal |
Port Size: |
DN40-DN1200 |
Test Standard: |
Strength & Sealing Test, Support Client Choose |
Quality Warranty: |
18 Months |
Name: |
Non-Rising Stem Gate Valve |
Standard Or Non-standard: |
Standard |
Product Features: |
Industrial Pipeline Control Valve |
Purpose: |
Open And Shut Off Pipeline |
Structure: |
Gate |
Manufacturing Craft: |
Casting |
Body Material: |
WCB |
Sealing Type: |
Hard Seal |
Port Size: |
DN40-DN1200 |
Test Standard: |
Strength & Sealing Test, Support Client Choose |
Quality Warranty: |
18 Months |
Name: |
Non-Rising Stem Gate Valve |

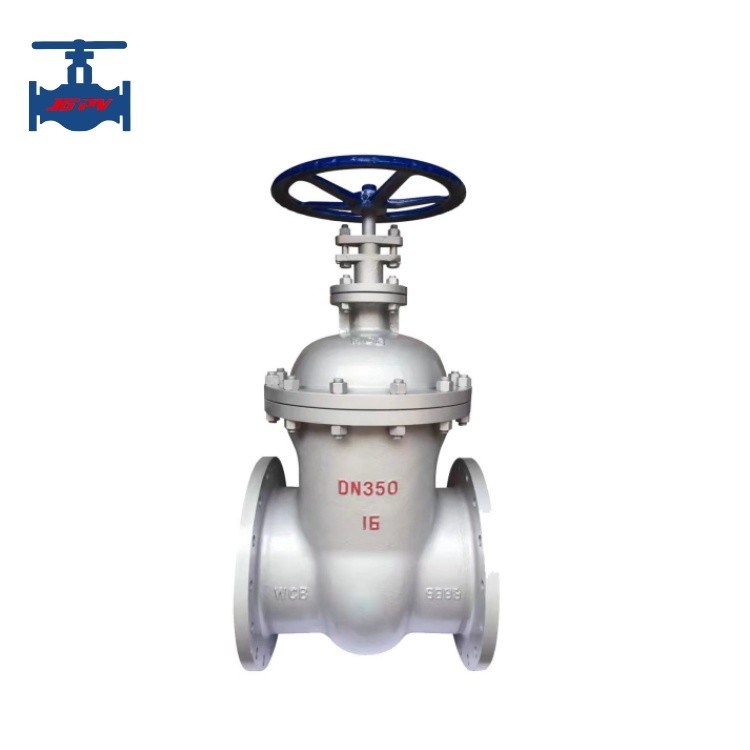

WCB NRS Non Rising Stem Gate Valve For Water Steam And Oil Pipeline Use
Product Introduction:
A gate valve is like a gate, with the movement direction perpendicular to the direction of the fluid, and gate valve can only be fully open and closed, not adjusted or throttled.
Gate valve with following working principle: turn the hand wheel to open and close the valve plate connected to the stem by the hand wheel and stem thread advance, back, lift or drop, very easy operation.
Z45H-16C gate valve is a valve widely used in industrial pipeline systems, mainly for cutting off or connecting media in pipelines. This valve has the characteristics of simple structure, easy operation, and good sealing performance, and is suitable for various media such as water, steam, and oil.
Z45H-16C pressure nominal can be higher to 100 bar, it has become an indispensable and important equipment in industrial pipeline systems due to its excellent sealing performance, high temperature and high pressure resistance, and wide application range. Through reasonable selection, installation, and maintenance, valves can ensure long-term stable operation and provide reliable support for industrial production.
Product specification parameters:
Product specification parameters:
| Type Number: | Z45H-16C, 25C, 40C, 64C, 100C | |
| Nominal Diameter DN(mm) | 40～1200 | |
| Nominal Pressure PN(MPa) | 1.6/2.5/4.0/6.4/10.0 | |
| Test pressure (MPa) | Strength (water) | 2.4/3.8/6.0/9.6/15.0 |
| Closure (water) | 1.76/2.75/4.4/7.04/11.0 | |
| Main Parts | Valve body | ASTM A216-WCB |
| Valve bonnet | ASTM A216-WCB | |
| DISC | 2Cr13 | |
| Hand wheel | 2Cr13 | |
| Yoke nut | Brass | |
| Medium applicable | Water, steam, oil and nitric acid etc corrosive medium | |
| Working temperature | -29~425℃ | |
| Connection type | Flange | |
Product features:
1. Compact structure: Z45H-16C gate valve adopts an integral structure, with small volume, light weight, and easy installation and maintenance.
2. Good sealing performance: The valve adopts a metal hard sealing structure, and the sealing surface is made of stainless steel or hard alloy material, which has good sealing performance and can effectively prevent medium leakage.
3. Easy to operate: The valve can be opened and closed flexibly, and can be operated through a handwheel, electric or pneumatic device to adapt to different working conditions.
High temperature and high pressure resistance: The valve body and valve cover are usually made of carbon steel (WCB), which has good high temperature and high pressure resistance and is suitable for high temperature and high pressure working conditions.
4. Wide applicability: Z45H-16C gate valve is suitable for working conditions with a working pressure of 1.6MPa (16bar) and a working temperature range of -29 ℃ to 425 ℃. It is widely used in industries such as water treatment, chemical, petroleum, metallurgy, etc.
Product application areas:
1. Water treatment: used in water treatment plants, sewage treatment plants, and other places to control the flow of water.
2. Chemical industry: used in pipeline systems for various corrosive media to ensure the sealing and circulation of the media.
3. Petroleum industry: used for oil transportation pipelines to ensure the safe transportation of oil products.
4. Metallurgical industry: used for medium control of high temperature and high pressure to ensure the stability of the production process.
