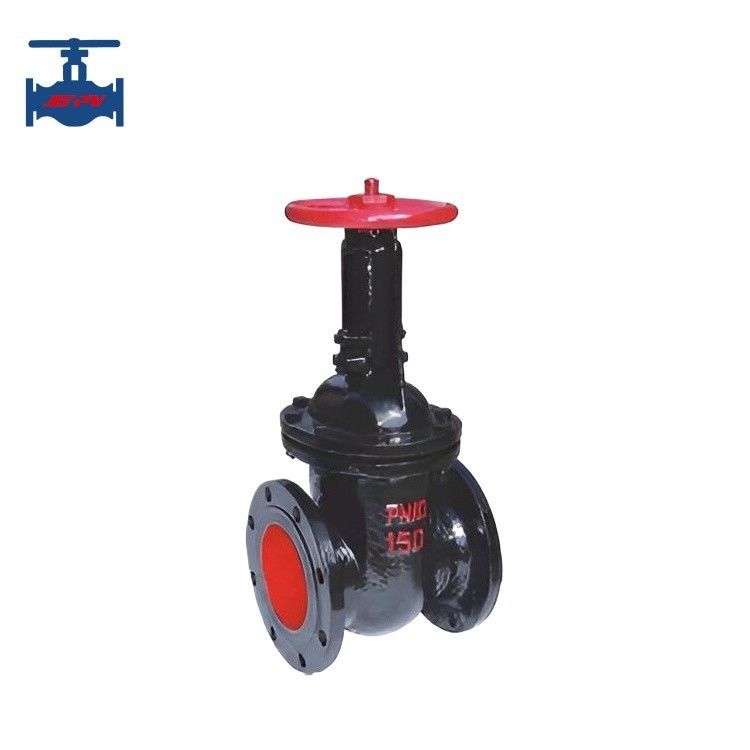

Open and Close Pipeline Flange-Connected Cast Iron Gate Valve with Copper Seal

Name: Open and Close Pipeline Flange-Connected Cast Iron Gate Valve with Copper Seal
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z41T-16C
Price: 14,504.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Model Number: Z41T-16C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Pipeline Flange-Connected Gate Valve, Copper Seal Gate Valve, Cast Iron Gate Valve


Standard Or Non-standard::	Standard	Product Features::	Water Pipeline Control Valve Product
Purpose::	Open And Close Pipeline	Structure::	Manual Gate Valve
Manufacturing Craft::	Casting	Body Material::	Cast Iron
Sealing Type::	Brass	Port Size::	DN40-DN500
Test Standard::	Strength & Sealing Test, Support Client Choose	Quality Warranty::	18 Months

Standard Or Non-standard::	Standard
Product Features::	Water Pipeline Control Valve Product
Purpose::	Open And Close Pipeline
Structure::	Manual Gate Valve
Manufacturing Craft::	Casting
Body Material::	Cast Iron
Sealing Type::	Brass
Port Size::	DN40-DN500
Test Standard::	Strength & Sealing Test, Support Client Choose
Quality Warranty::	18 Months

Open and Close Pipeline Flange-Connected Cast Iron Gate Valve with Copper Seal

Highlight:
Brass Seal Cast Iron Gate Valve
,
Water Applicable Cast Iron Gate Valve
,
Oil Applicable Cast Iron Gate Valve

Water And Oil Applicable Cast Iron Rising Stem Gate Valve With Brass Seal

Product description

The gate valve is a valve device that realizes the on-off control of pipeline media through the lifting movement of the closing element (gate) along the vertical direction of the pipeline centerline. As the most widely used cut-off valve in industrial pipeline systems, its structural design is centered on the "straight channel + parallel sealing surface" to ensure the high efficiency of medium flow and the tightness of cut-off.

Cast steel is a type of steel formed by casting process. With its high strength, corrosion resistance, and excellent mechanical properties, it is mainly used to control the flow rate, pressure, and temperature of industrial pipelines, playing a core role in the field of automated production.

Product specification parameters:

Nominal Diameter DN (mm)		40~500
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Valve body	HT200
	Bonnet & Disc	HT200
	Stem	Carbon Steel
	Seal	Brass
	Packing	Oil-immersed asbestos
Working temperature		≤100℃
Medium suitable		Water and steam
Connection		Flanges connection

Product features:

1. Fluid resistance is small, sealing surface by medium erosion and erosion.

2. Easy operation of open and close.

3. Medium flow is not restricted, no turbulence, no pressure reduction.

4. Simple shape, short structural length, mature manufacturing control and wide application.
