Electric Actuation and Spur Gear Integrated Stainless Steel Gate Valve for Enhanced Sealing Performance

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Gate Valve, Enhanced Sealing Performance Gate Valve, Electric Actuation Gate Valve


Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

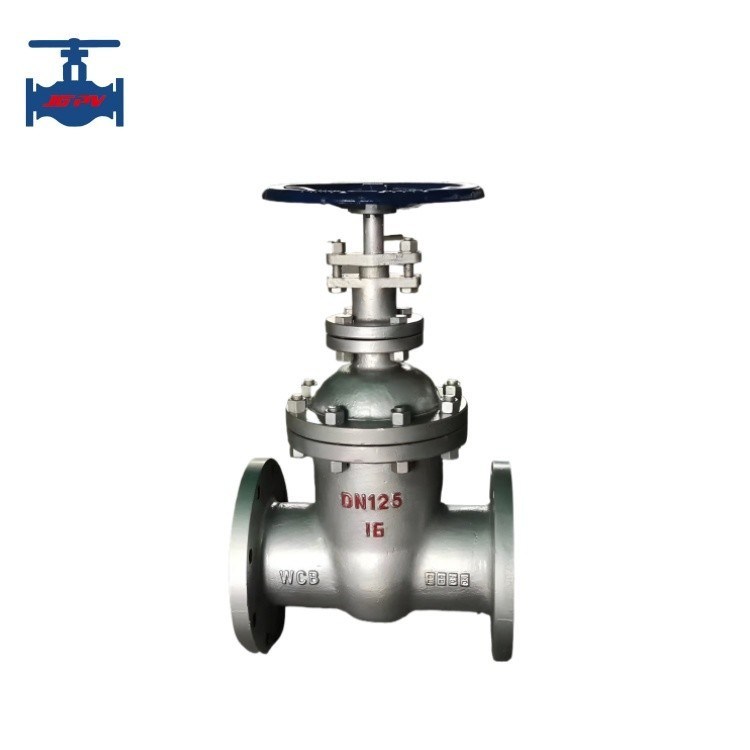

Electric Actuation and Spur Gear Integrated Stainless Steel Gate Valve for Enhanced Sealing Performance

Product introduction:

Gate valve is a like a gate, with the movement direction perpendicular to the direction of the fluid, and gate valve can only be fully open and closed, not adjusted or throttled, It is widely used in petrochemical, pharmaceutical, electric power and other industries.

This gate valve with non-rising stem, has two sealing faces, with bronze raw material, forming a wedge with a wedge angle varying with valve parameters, usually 50, and 2°52' when medium temperature is not high, it is made into a whole body, so called the rigid gate, it is Installed in the pipeline, as a closed circuit equipment only, not allowed to adjust the flow rate and empty use.

Its working principle: turn the hand wheel to open and close the valve plate connected to the stem by the hand wheel and stem thread advance, back, lift or drop, very easy operation.

Product technical parameters:

Nominal Diameter DN (mm)		50~300
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Valve body	A216-WCB
	Bonnet & Disc	A216-WCB
	Stem	2Cr13
	Seal	Stainless steel
	Packing	Oiled asbestos
	Hand-wheel	HT200
Working temperature		-29~425℃
Medium suitable		Water, steam and oil
Connection		Flanges connection

Product features:

1. Low flow resistance, valve body internal medium channel is straight, medium into a straight line flow, flow resistance is small.

2, Save manpower for opening and closing compared with the globe valve, because whether open or closed, the movement direction of the gate is perpendicular to the direction of the flow side of the medium.

3. High height and long opening and closing time.The opening and closing stroke of the gate is larger, and the drop is carried out through the screw rod.

4, Low water hammer phenomenon due to long shutdown time.

5, Two ways direction, medium can flow to both sides in any direction, easy to install.

6. The structural length (the distance between the two connecting ends of the shell) is small.
