Product technical parameters:

Model	Nominal pressure (MPa)	Test pressure			Operating temperature(℃)	Suitable medium
Model	Nominal pressure (MPa)	Strength Water(MPa)	Seal (water) air(MPa)	Low-pressure sealing air(MPa)	Operating temperature(℃)	Suitable medium
Z941H-16C Z41W-16P(R)	1.6	2.4	1.8	0.6	425	Nitric acid type
Z941W-25P(R)	2.5	3.8	2.8	0.6	≤200	Acetic acid type
Z941W-40P(R)	4.0	6.0	4.4	0.6	≤200	Nitric acid type
Z941W-64P(R)	6.4	9.6	7.0	0.6	≤200	Acetic acid type

Product features:

1. Electric gate valve with excellent control accuracy and stability: electric motor control valve opening and closing to achieve accurate flow control.

Ball valves and butterfly valves, as rotary valves, have relatively low control accuracy and may not be ideal for high demand flow control scenarios.

2. Electric gate valve with good truncation performance, due to their linear stroke characteristics, can provide good cutoff performance and completely cut off fluid flow

3. Electric gate valve with quick response and speed adjustment, so it is suitable for systems that require frequent fluid regulation.

4. Electric gate valve can withstand high pressure resistance and corrosion resistance, widely used in some special working conditions.

Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Pipe Control Valve

Ball Valve

Flange End Ball Valve

Gate Valve

Rising Stem Gate Valve

Non Rising Stem Gate Valve

Forged Gate Valve

Butterfly Valve

Triple Offset Butterfly Valve

Globe Valve

Check Valve

Safety Valve

Pneumatic Valve

Electric Valve

Pressure Reducing Valve

Steam Trap Valve

Hydraulic Water Control Valve

Fluorine Lined Valve

Fire Fighting Valve

Screw Type Valve

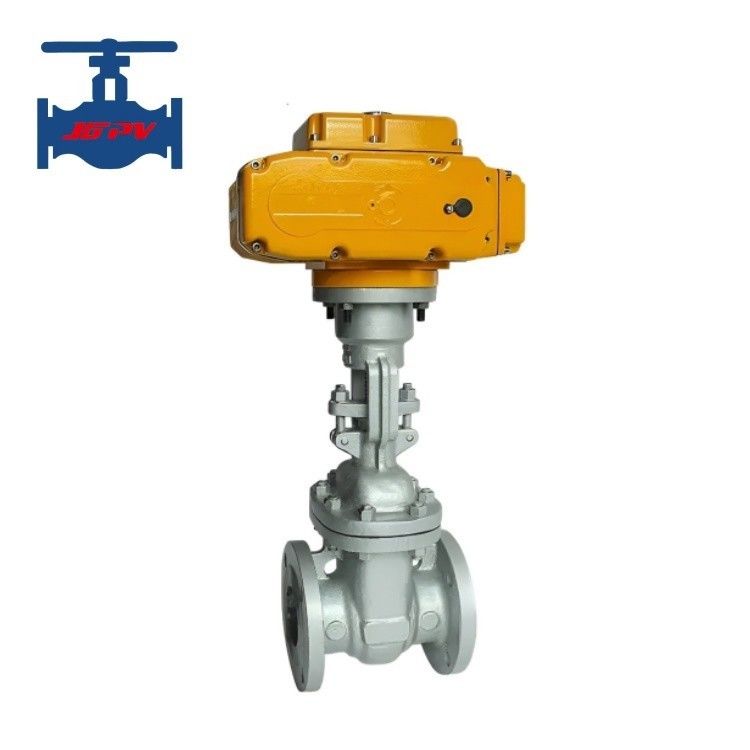

Electric cast steel/stainless steel hard-sealed rising stem flange gate valve
