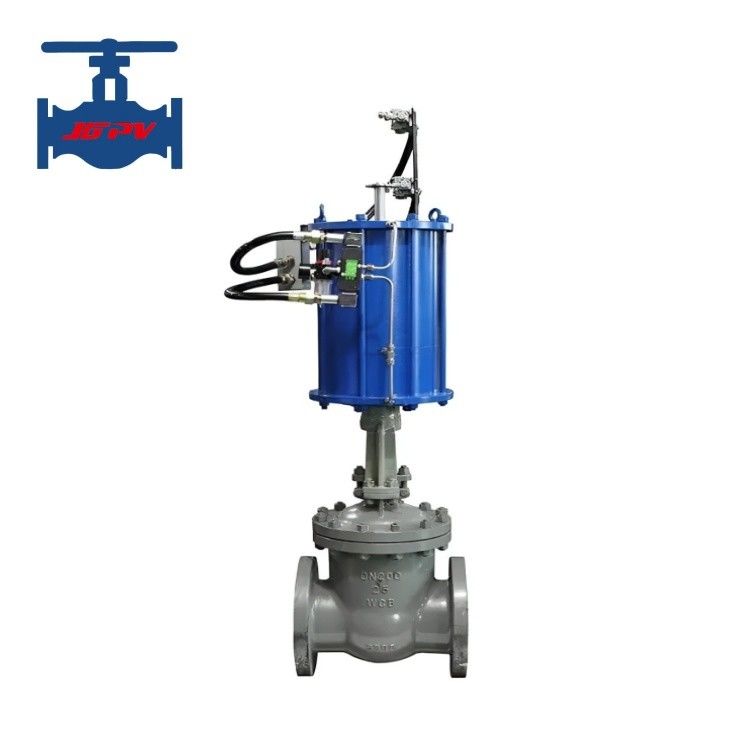

Standard Z641H-16C Pneumatic Gate Valve with Two Way Flow

Highlight: The actuator of the pneumatic gate valve comes with both direct and reverse action capabilities, enabling

the valve to operate in either air-to-open or air-to-close modes.

product introduction:

A pneumatic gate valve is a type of gate valve controlled by a pneumatic actuator to achieve valve opening and closing. It

can be divided into two parts: the upper part is the pneumatic actuator, and the lower part is the valve body. The operating

torque of the pneumatic actuator is greater than that of the valve, and the opening/closing speed can be adjusted. It features

a simple structure, easy maintenance, and due to the buffering characteristics of the gas itself during operation, it is less

likely to be damaged by jamming. However, it requires an air source, and its control system is more complex than that of

electric valves. Pneumatic gate valves are sensitive in response, safe and reliable. Many factories with high control

requirements specially set up compressed air stations for pneumatic instrument control components.

Product technical paramter:

Product Features:

1. Simple structure, small size and light weight.

2. Highly reliable, safe, long service life, convenient maintenance, few vulnerable parts and low cost. (Note: Since pneumatic

control components themselves have explosion-proof performance, there is no need to consider flammable gas environments.)

3. Can achieve remote control and centralized management, with simple operation and less maintenance workload.

4. Suitable for various corrosive liquids and suspended liquids containing particulate impurities (such as sewage with solid

materials, oil products with fibrous substances, materials with chemical additives or abrasiveness, etc.), and is not affected

by pipeline transportation pressure.

5. Can automatically maintain the open state during full opening or closing to achieve good adjustment effects, avoid

failures caused by human misoperation, and can also be used for remote control (customization required).
