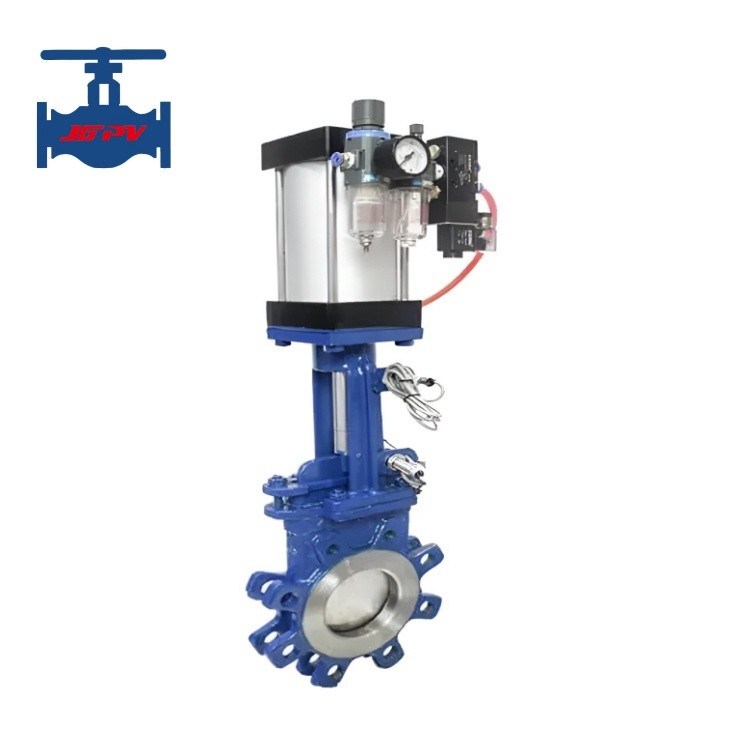

Medium Type Steam and Oil Pneumatic Knife Gate Valve for Industrial

Name: Medium Type Steam and Oil Pneumatic Knife Gate Valve for Industrial
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z673-16C
Price: 14,504.00 USD
Availability: InStock

Product Details

Place of Origin: China

Model Number: Z673-16C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Medium Type Pneumatic Knife Gate Valve, Oil Pneumatic Knife Gate Valve, Industrial Pneumatic Knife Gate Valve


Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Medium Type Steam and Oil Pneumatic Knife Gate Valve for Industrial

Highlight:Pneumatic Knife Gate Valve

Product introduction:

A pneumatic gate valve is a type of gate valve controlled by a pneumatic actuator to achieve the opening and closing of the valve. It can be divided into two parts: the upper part is the pneumatic actuator, and the lower part is the valve. The operating torque of the pneumatic actuator is larger than that of the valve, and the switching speed can be adjusted. It has a simple structure and is easy to maintain. During the operation, due to the buffering characteristics of the gas itself, it is not easy to be damaged by jamming. However, it must have an air source, and its control system is also more complex than that of an electric valve. Pneumatic gate valves respond sensitively, are safe and reliable, and many factories with high control requirements specially set up compressed air stations for pneumatic instrument control components.

Product technical parameters:

Model	PN	Working Pressure / MPa	Applicable Temperature / °C	Applicable Medium
PZ673H-10C~16C	10~16	1.0~1.6	≤ 100	Pulp, sewage, coal slurry, ash slag cement mixture
PZ673F-10P~16P
PZ673Y-10P~16P

Product features:

Simple structure, small size, light weight.
Highly reliable, safe, long lifespan and convenient maintenance.
It can achieve remote control and centralized management operations with simple maintenance workload.
It can automatically maintain the open state during the fully open or fully closed process to achieve good adjustment effect and achieve remote control, and can avoid wrong manual operation.
Electromagnetic inverters with various special functions can be configured according to user needs to meet various customer requirements.
The use of compressed air as the power source to drive the piston transmission system ensures smooth operation, no vibration, low noise, and long service life of the product.
