18 Months Pneumatic Actuation Worm Gear Driven Wafer Type Butterfly Valve For Smooth Flow Control

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Wafer Type Butterfly Valve, Smooth Flow Control Butterfly Valve, 18 Months Pneumatic Actuation Butterfly Valve


Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

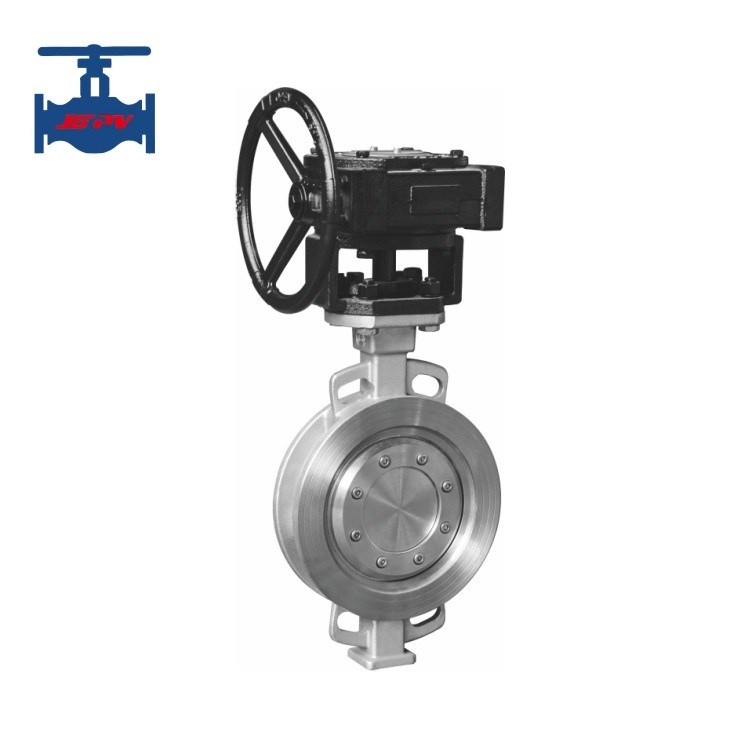

18 Months Pneumatic Actuation Worm Gear Driven Wafer Type Butterfly Valve For Smooth Flow Control

Highlight: worm gear driven wafer type butterfly valve

Product Introduction:

The product consists of rubber sealed butterfly valve and worm gear actuator, suitable for regulating flow rate and intercepting medium in water supply and drainage pipes of food, medicine, chemical industry, petroleum, electric power, light textile, paper making etc.

Product Technical Parameters:

Type number
Nominal Diameter DN(mm)		50～1200
Nominal Pressure PN(MPa)		1.6
Control method		Electricity: On/off switch
Power supply		AC380V
Main parts	Valve body	Stainless steel 304 (CF8)
	Disc	Stainless steel 304 (CF8)
	Valve seat	PTFE
	Axle	Stainless steel 304 (CF8)
Medium suitable:		Water, air, oil and nitric acid etc corrosive medium
Working temperature		150≤℃
Connection type		Wafer type

Product Functions:

1. Small and light, easy to disassemble and repair, can be installed in any location.

2. Simple structure, compact, 90°rotation start quickly.

3. small operating torque, small effort.

4. flow characteristics tend to be straight, good regulation performance.

5. opening and closing test times up to tens of thousands of times, long life.

6. The sealing element can be replaced, the sealing is reliable to achieve two-way sealing, and the leakage of gas test is zero.

7. sealing material aging, corrosion resistance, can be applied to a variety of media.
