Highlight:
Resilient Seat Gate Valve
, High Temperature Gate Valve
, 18 Months Gate Valve
Application:: |
General |
Medium Type:: |
Water, Steam And Oil Etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow Way:: |
Two Way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

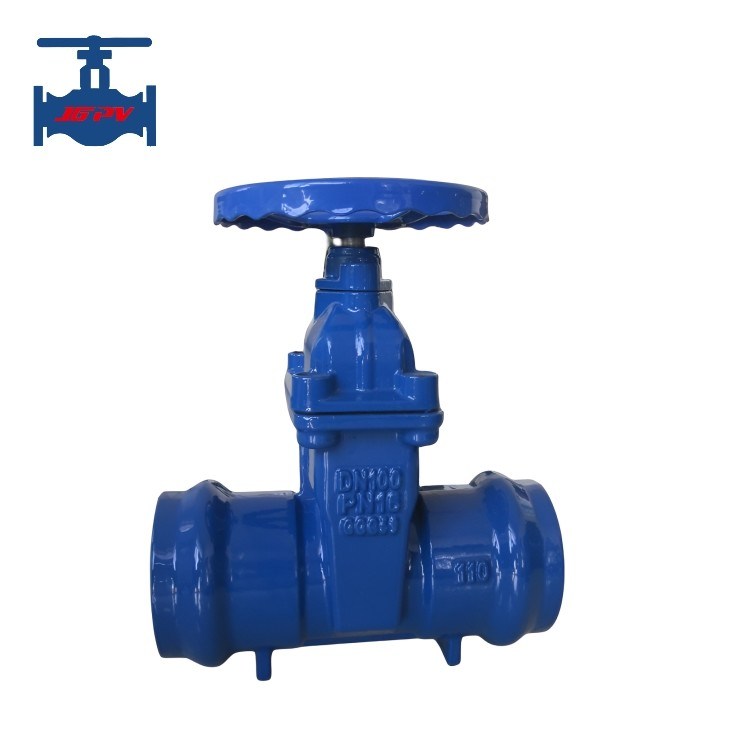

18 Months Ductile Iron Casting Resilient Seat Grooved Gate Valve For Normal And High Temperature
Highlight: Ductile iron casting resilient seat grooved gate valve
Product introduction:
As a replacement for traditional gate valves, soft-sealed gate valves achieve good sealing performance through the
compensation effect of slight deformation generated by the elastic gate plate. This valve has significant advantages such as
lightweight operation, reliable sealing, excellent elastic memory, and long service life, and can be widely used in fluid
pipelines for tap water, sewage, construction, food, electricity, medicine, metallurgy, textiles, energy systems, etc. Rising
stem gate valves feature a stem that moves up and down with the opening and closing of the valve, meaning that when
the drive system operates, the rotational motion of the stem is converted into linear motion. When the gate descends, it
seals against the valve seat, essentially stopping fluid flow; when the gate rises, the valve opens to allow fluid passage.
Gate valves typically incorporate a metal-to-metal sealing mechanism to provide a tight shut-off. Suitable for both on/off and
throttling applications, these valves are commonly used in various industries such as oil and gas, water treatment, power
generation, and chemical processing. Due to their simple structure, the valves are also easy to maintain and repair. The
rising stem design facilitates intuitive inspection of the valve's position and status to meet different usage requirements.
Product technical parameters:
|
Diameter nominal DN (mm)
|
40～600
|
|
Pressure nominal PN (MPa)
|
1.0～2.5
|
|
Test standard
|
Strength test (MPa)
|
1.5 times of pressure nominal
|
|
Sealing test (MPa)
|
1.1 times of pressure nominal
|
|
Main Components
|
Body
|
Ductile iron
|
|
Bonnet
|
Ductile iron
|
|
Stem
|
2Cr13
|
|
O type ring
|
NBR
|
|
Seal
|
NBR
|
|
Gland
|
Ductile iron
|
|
Disc
|
Ductile iron wrapped by NBR
|
|
Medium suitable
|
Water
|
|
Working temperature
|
0℃～80℃
|
|
Connection type
|
grooved
|
Product features:
1.High quality rubber is adopted for the internal and external encapsulation of valve, and the connection between rubber and valve is reliable and not easy to fall off;
2.As three "O"-shaped rings are designed on valve rod, the friction resistance of switch can be reduced and water leakage can be decreased significantly;
3.Corrosion resistance.
