Highlight:
                                                                                                                                                                                                                                                                                                                                                                                18 Months Bellow Sealed Gate Valve, Direct Mount Gate Valve, Direct Mount Bellow Sealed Gate Valve


Application:	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application:	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

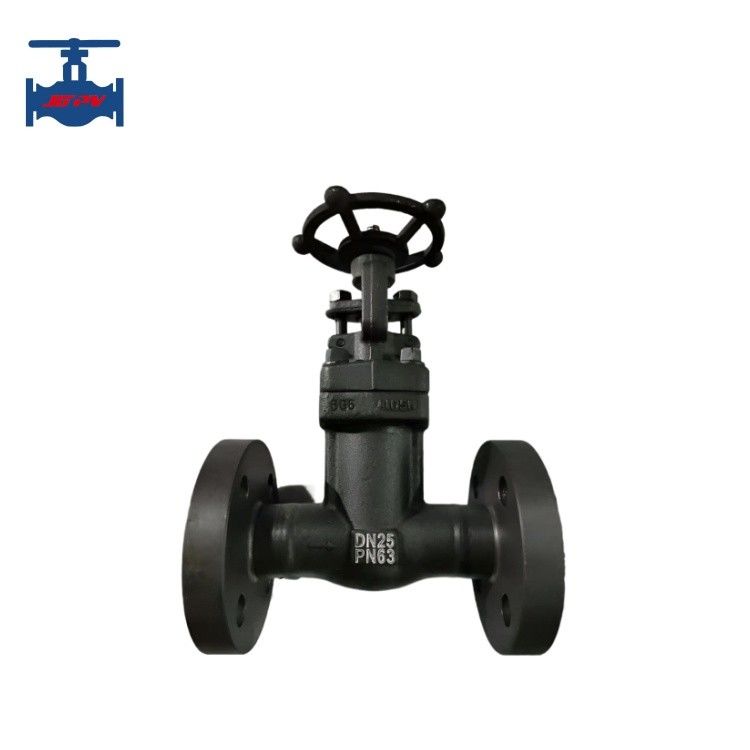

Direct Mount Bellow Sealed Gate Valve With 18 Months

Highlight: Bellow sealed gate valve

Product introduction:

Bellows gate valves mainly refer to gate valves that use bellows as the sealing element for the valve stem, and are often

used in scenarios with strict requirements for valve stem sealing. By replacing the packing in ordinary valves with bellows

or using them in combination with packing glands, these valves can achieve zero leakage at the valve stem, preventing

the leakage of radioactive materials, precious metals, or maintaining a high vacuum state. The bellows expand and

contract with the lifting of the valve stem, and their maximum working pressure depends on the pressure resistance and

fatigue strength of the bellows.

Product technical parameters:

Nominal DiameterDN(mm)		DN15～DN1500
Nominal PressurePN(MPa)		1.0～10.0MPa
Test PressurePs(MPa)	Strength Test	1.5～15.0MPa
	eal test	1.1～11.0MPa
Medium applicable		Water, oil, acid and alkali and other corrosive media
Working temperature		-25℃～425℃
Connection method		Flanged type

Product features:

1. Reliable sealing: The bellows of bellows valves have good sealing performance, which can effectively prevent medium leakage.

2. Long service life: The bellows of bellows valves have a long service life, which can reach 500,000 to 1,000,000 life cycles.

3. Light operation: Bellows valves are easy to operate, convenient for opening control, and have a simple structure for easy maintenance.

4. Rich styles: Bellows valves are available in various types, and different styles can be selected according to different uses and media.
