Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Direct Mount Ball Valve, Superior Sealing Performance Ball Valve, Electric Cast Iron Ball Valve


Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

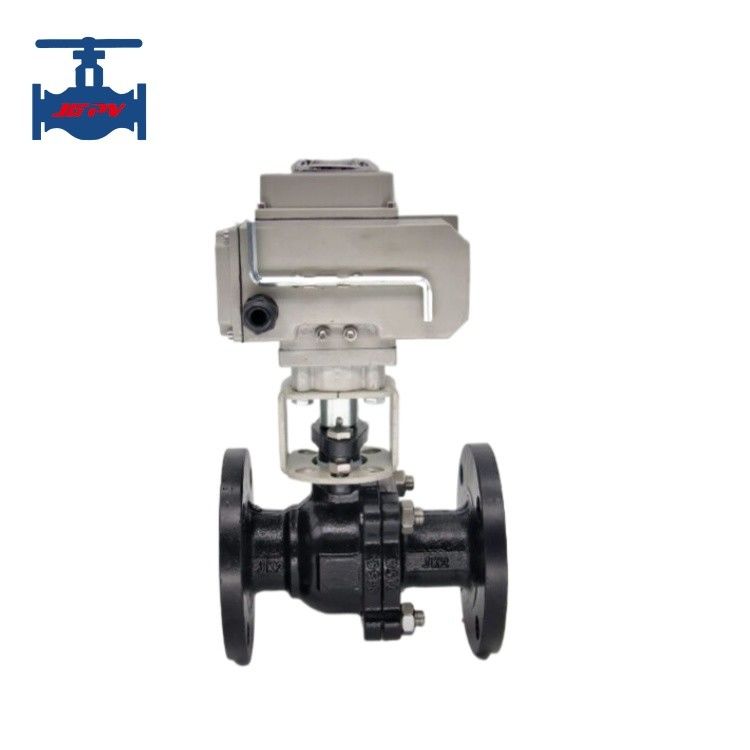

Direct Mount Electric Cast Iron Ball Valve with Superior Sealing Performance

Highlight: Electric cast iron ball valve

Product introduction:

An electric ball valve is a control valve driven by a motor, which is used to achieve flow control, cutoff, and regulation of

liquids and gases. It can be remotely operated and automatically controlled through remote control systems, PLC control,

etc., featuring convenient operation and high efficiency. Electric ball valves can be applied in various industries such as

petrochemical, water treatment, thermal power generation, and other fields.

Product technical parameters:

Type number		Q941F-16c
Nominal Diameter DN(mm)		DN15～DN300
Nominal Pressure PN(MPa)		1.6MPa / 4.0MPa
Control method		Electricity: On/off switch
Power supply		AC380V
Test Pressure (MPa)	Strength (water)	2.4 / 6.0
	Closure (water)	1.76/ 4.4
Main parts	Valve body	Stainless steel 304 (CF8)
	Valve bal	Stainless steel 304 (CF8)
	Sealing ring	PTFE
Medium suitable:		Water, steam, air and nitric acid etc corrosive medium
Working temperature		200≤℃
Connection type		Flange

Product features:

1. Good valve sealing performance: Electric ball valves have excellent sealing performance, which can prevent leakage of

liquids and gases and ensure the safety of fluid pipelines.

2. Strong adaptability: Electric ball valves are suitable for different media and can achieve flow control under high/low

temperatures and high/low pressures.

3. Excellent anti-corrosion performance: Electric ball valves are made of special materials, which can resist chemical

corrosion and the corrosiveness of special environments such as high temperature and high pressure.

4. Energy-saving and environmentally friendly: Electric ball valves can reduce the resistance of fluid pipelines, lower

energy consumption, and cause no pollution to the environment.
