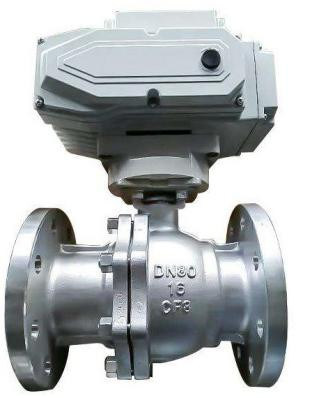

Water Medium Type Electric Flanged Stainless Steel Ball Valve With Two Way Flow

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Electric Flanged Stainless Steel Ball Valve, Water Medium Stainless Steel Ball Valve


Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Water Medium Type Electric Flanged Stainless Steel Ball Valve With Two Way Flow

Highlight: Electric flanged stainless steel ball valve

Product introduction:

Electric ball valve is a rotation Angle of 90°ball valve, flow resistance coefficient is small, simple structure, convenient maintenance, long service life, valve channel and connection pipe diameter and into a diameter, the medium can almost no loss of flow.Products are usually used in the occasions with strict sealing requirements, except for controlling gas, liquid and steam medium, it is also suitable for controlling sewage and medium containing fibrous impurities, widely used in petroleum, chemical industry, metallurgy, light industry, paper making, power station, refrigeration and other work fields.

Product technical parameters:

Nominal Diameter DN (mm)		50~200
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Body	WCB/CF8/CF8M
	Valve ball	Stainless steel/Carbon steel
	Seat	PTFE
	Packing	Soft graphite
	Shaft	2Cr13
	Handle	Ductile iron
Working temperature		≤150℃
Medium suitable		Water, oil, steam

Product features:

1. Low fluid resistance, ball valve is the least fluid resistance in all valve classes.

2. Thrust bearing reduces the stem friction torque, allowing the stem to be balanced and flexible in long-term operation.

3. Good sealing performance of the valve seat, using the sealing ring made of PTFE and other materials, the structure is easy to seal, and the valve sealing ability of the ball valve increases with the increase of media pressure.

4 valve stem seal reliable, because the valve stem only rotation movement and not do lifting movement, stem packing seal is not easy to damage, and sealing capacity with the media pressure and increase.
