Highlight:
Two Way Flow Ball Valve
, Water Medium Type Ball Valve
, Pneumatic Flanged Ball Valve
Application:: |
General |
Medium Type:: |
Water, Steam And Oil Etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow Way:: |
Two Way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

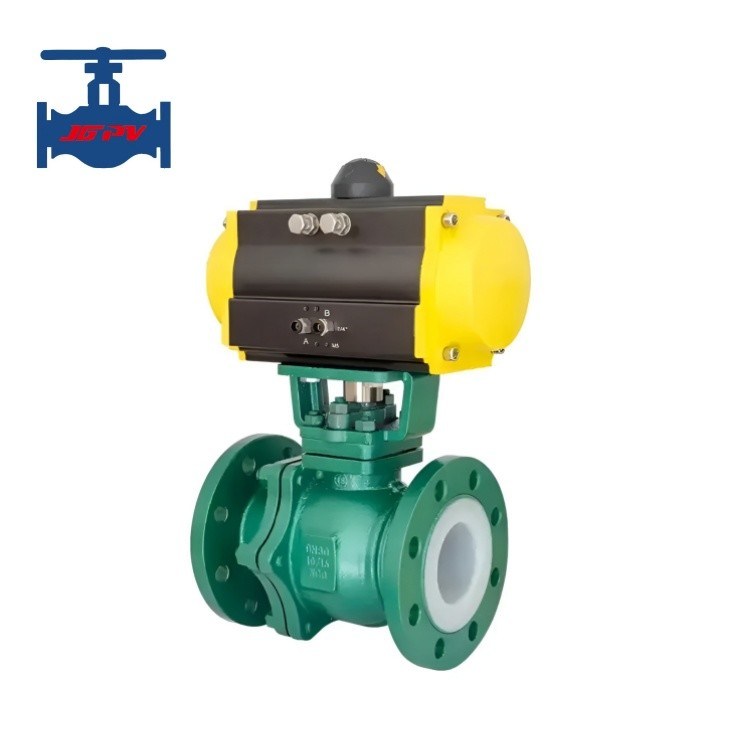

Two Way Flow Pneumatic Flanged Ball Valve With Water Medium Type
Highlight: Pneumatic flanged ball valve
Product introduction:
A pneumatic ball valve is a device that uses air or other gases to control the opening and closing of the valve. Its function is
to control the flow in pipelines, that is, to control the on/off and flow rate of the pipeline by rotating the valve ball. Therefore,
pneumatic ball valves are widely used in pipeline systems of industries such as petroleum, chemical, metallurgy, and water
treatment. Pneumatic ball valves are mainly used to control the flow direction, flow rate, pressure, and temperature of fluids
such as liquids, gases, and solid particles. They offer advantages such as fast opening/closing, reliable sealing, strong flow
capacity, long service life, convenient maintenance, and simple structure.
Product technical parameters:
|
Nominal Diameter DN (mm)
|
50~200
|
|
Nominal Pressure PN (MPa)
|
1.6
|
|
Test Pressure (MPa)
|
Strength (water)
|
2.4
|
|
Enclose (Water)
|
1.76
|
|
Main Components
|
Body
|
WCB/CF8/CF8M
|
|
Valve ball
|
Stainless steel/Carbon steel
|
|
Seat
|
PTFE
|
|
Packing
|
Soft graphite
|
|
Shaft
|
2Cr13
|
|
Handle
|
Ductile iron
|
|
Working temperature
|
≤150℃
|
|
Medium suitable
|
Water, oil, steam
|
Product features:
1. Fast switching: Controlled by air source, it can achieve quick opening and closing, improving operational efficiency.
2. Reliable sealing: The ball valve uses a sealing ring for sealing, with good sealing performance to effectively prevent fluid
leakage.
3. Strong flow capacity: The ball valve has a large flow capacity and low resistance. When fluid passes through the ball valve,
the flow performance is stable, meeting high-flow requirements.
4. Long service life: Pneumatic ball valves have a simple structure with few components, featuring corrosion resistance, wear
resistance, and long service life.
5. Convenient maintenance: Pneumatic ball valves are detachable and maintainable, making maintenance and material
replacement convenient.
