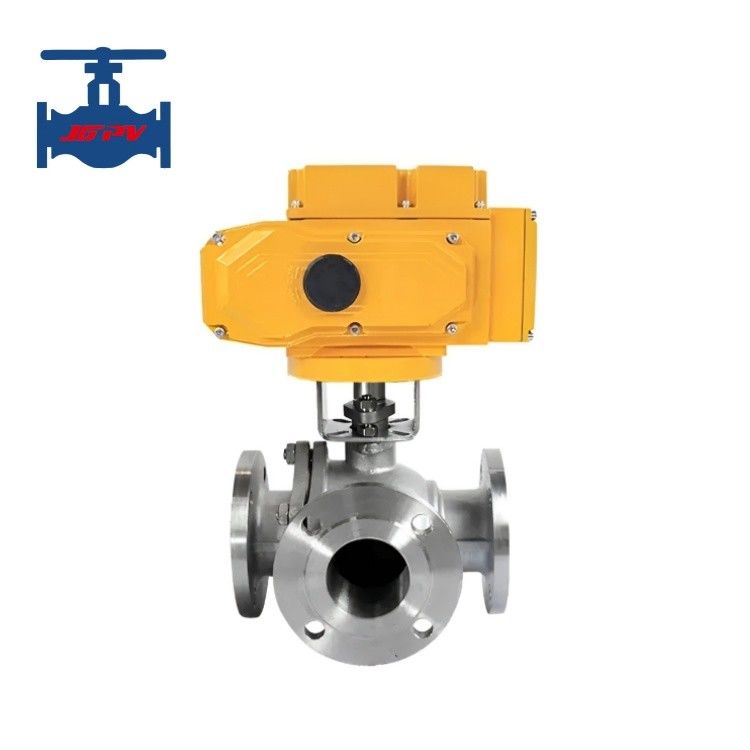

Standard Electric Flanged Three-Way Ball Valve Perfect For General Applications

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Three-Way Ball Valve, General Applications Ball Valve, Standard Electric Ball Valve


Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Three Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Three Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Standard Electric Flanged Three-Way Ball Valve Perfect For General Applications

Highlight: Electric flanged three-way ball valve

Product introduction:

Three way ball valves are available in T and L shapes. T-shaped pipes can connect and cut off the third channel of three orthogonal pipes, playing a role in diversion and convergence. The L-three-way ball valve type can only connect two orthogonal pipelines and cannot maintain the interconnection of the third pipeline at the same time. It only plays a distribution role.

Product technical parameters:

Nominal Diameter DN (mm)		50~200
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Body	WCB/CF8/CF8M
	Valve ball	Stainless steel/Carbon steel
	Seat	PTFE
	Packing	Soft graphite
	Shaft	2Cr13
	Handle	Ductile iron
Working temperature		≤150℃
Medium suitable		Water, oil, steam

Product features:

1. Simple structure: Compared with other complex valves, the three-way ball valve has a relatively simple structure,

making it easy to operate and maintain.

2. High reliability: The three-way ball valve is mainly composed of a ball, seat, and operating rod, with high sealing

performance to prevent fluid leakage.

3. Good corrosion resistance: Three-way ball valves can be made of various materials such as stainless steel, cast iron,

copper, etc., which can withstand multiple chemical media and have good corrosion resistance.

4. Convenient regulation: By rotating the operating rod, the direction and flow rate of the fluid can be controlled to achieve

different operations such as mixing or diverting.

5. Diverse specifications: Three-way ball valves are available in various specifications to meet the needs of different pipelines.
