Highlight:
Precision Pneumatic Ball Valve
, Normal Pressure Ball Valve
, General Applications Ball Valve
Application:: |
General |
Medium Type:: |
Water, Steam And Oil Etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow Way:: |
Two Way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

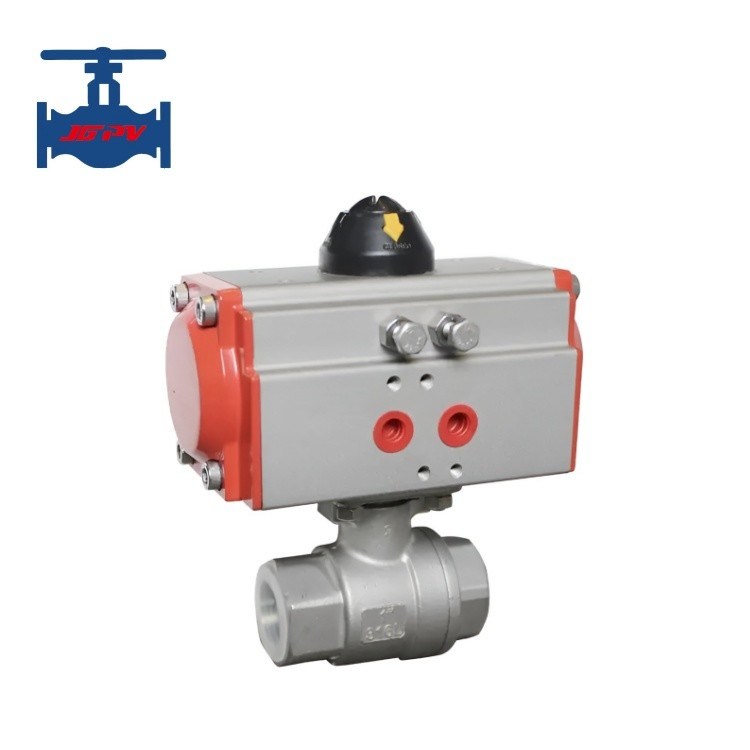

Precision Pneumatic Internal Thread Ball Valve For General Applications At Normal Pressure
Highlight: Pneumatic internal thread ball valve
Product introduction:
A pneumatic ball valve is a device that uses air or other gases to control the opening and closing of the valve. Its function is
to control the flow in pipelines, that is, to regulate the on/off state and flow rate of the pipeline by rotating the valve ball.
Therefore, pneumatic ball valves are widely used in pipeline systems of industries such as petroleum, chemical engineering,
metallurgy, and water treatment. Pneumatic ball valves are mainly used to control the flow direction, flow rate, pressure, and
temperature of fluids such as liquids, gases, and solid particles. They offer advantages such as fast opening/closing, reliable
sealing, strong flow capacity, long service life, convenient maintenance, and a simple structure.
Product technical parameters:
|
Nominal Diameter DN (mm)
|
15~100
|
|
Nominal Pressure PN (MPa)
|
1.6
|
|
Test Pressure (MPa)
|
Strength (water)
|
2.4
|
|
Enclose (Water)
|
1.76
|
|
Main Components
|
Body
|
WCB/CF8/CF8M
|
|
Valve ball
|
Stainless steel/Carbon steel
|
|
Seat
|
PTFE
|
|
Packing
|
Soft graphite
|
|
Shaft
|
2Cr13
|
|
Handle
|
Ductile iron
|
|
Working temperature
|
≤150℃
|
|
Medium suitable
|
Water, oil, steam
|
Product features:
1. Fast switching: Controlled by an air source, it can achieve rapid opening and closing, improving operational efficiency.
2. Reliable sealing: The ball valve uses a sealing ring for sealing, with excellent sealing performance to effectively prevent
fluid leakage.
3. Strong flow capacity: The ball valve has a large flow capacity and low resistance. When fluid passes through the ball
valve, the flow performance remains stable, meeting high-flow requirements.
4. Long service life: Pneumatic ball valves have a simple structure with few components, featuring corrosion resistance,
wear resistance, and a long service life.
5. Convenient maintenance: Pneumatic ball valves are detachable and maintainable, making maintenance and material
replacement convenient.
