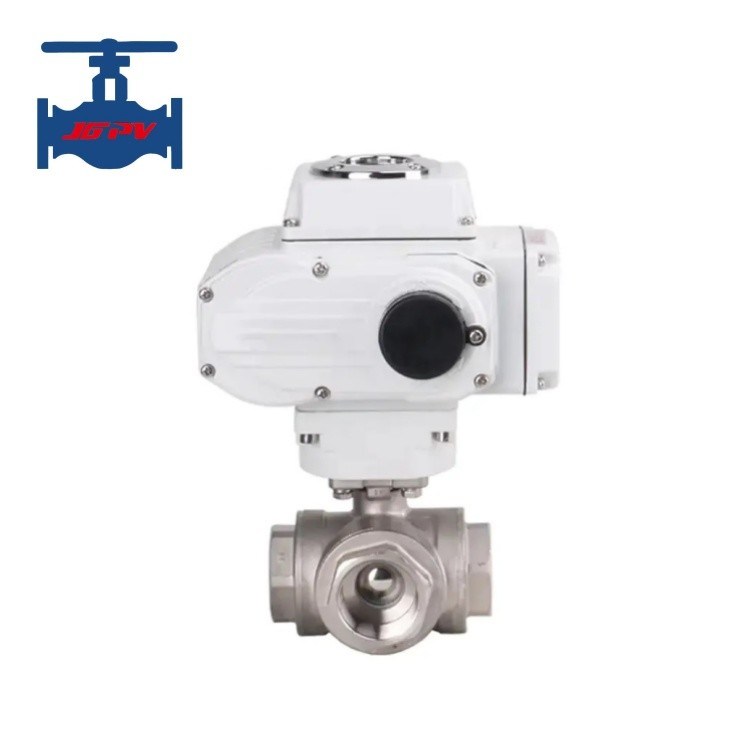

Medium Type 3-WAY Electric Ball Valve For Steam And Oil Standard Performance

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                3 WAY electric ball valve, Oil Standard Performance Ball Valve, Electric Ball Valve


Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Medium Type 3-WAY Electric Ball Valve For Steam And Oil Standard Performance

Highlight: 3-WAY electric ball valve

Product introduction:

Three way ball valves are available in T and L shapes. T-shaped pipes can connect and cut off the third channel of three orthogonal pipes, playing a role in diversion and convergence. The L-three-way ball valve type can only connect two orthogonal pipelines and cannot maintain the interconnection of the third pipeline at the same time. It only plays a distribution role.

Product technical parameters:

Nominal Diameter DN (mm)		15~100
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Body	WCB/CF8/CF8M
	Valve ball	Stainless steel/Carbon steel
	Seat	PTFE
	Packing	Soft graphite
	Shaft	2Cr13
	Handle	Ductile iron
Working temperature		≤150℃
Medium suitable		Water, oil, steam

Product features:

1. The three-way ball valve features a compact structure, rapid opening and closing, and low fluid resistance.

2. After the system is depressurized, maintenance can be carried out without removing the entire valve body, saving time

and cost.

3. The four-way valve seats of the three-way ball valve are all made of PTFE, providing good sealing performance.

4. The three-way ball valve can be manufactured with an L-type port or a T-type port, and users can select suitable products

according to their needs.
