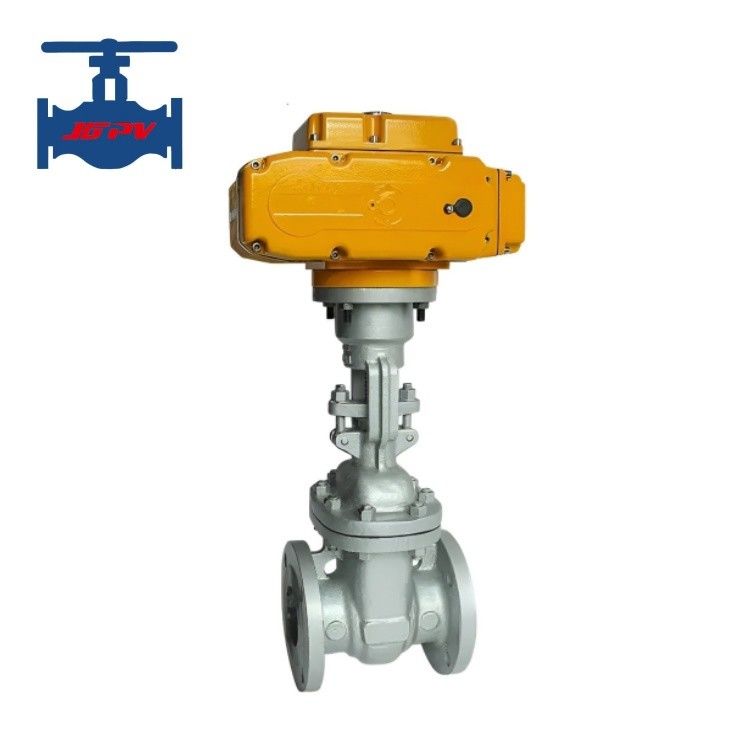

Normal Pressure Screw Connection Electric Flange Gate Valve for Industrial

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Electric Flange Screw Connection Gate Valve, Industrial Screw Connection Gate Valve, Normal Pressure Screw Connection Gate Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Function：:	Condensate Drain
Connection::	Screw Connection	Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Function：:	Condensate Drain
Connection::	Screw Connection
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Normal Pressure Screw Connection Electric Flange Gate Valve for Industrial

Product Specifications

Attribute	Value
Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Description

Highlight: Electric flange gate valve

Gate valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.

Technical Parameters

Nominal Diameter DN (mm)	50~200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Cast steel gate valve with low flow resistance
Cast steel gate valve with less erosion of the sealing surface by the medium
Cast steel gate valve with compact structure, opening and closing are more effortless
The flow direction of the medium is not restricted, does not disturb flow, and does not reduce pressure
As medium can flow toward either direction of the two sides, it is easy to be installed
Short structure and manufacturing process and there are many materials available for high temperature and high pressure resistance
