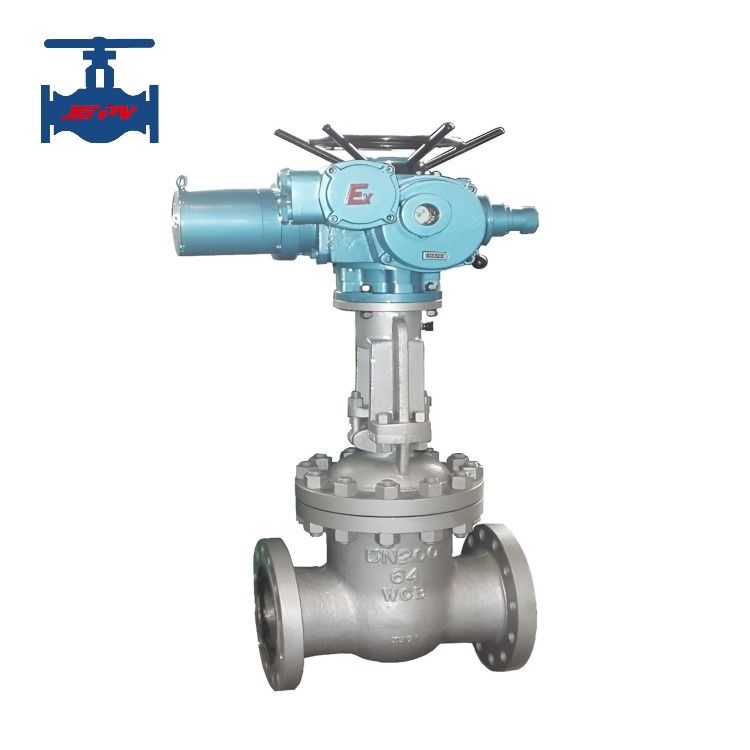

WCB Bolted Bonnet Gate Valve Outside Screw And Yoke With Electric Actuator

Name: WCB Bolted Bonnet Gate Valve Outside Screw And Yoke With Electric Actuator
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z941H-JGPV
Price: 7,033.50 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Z941H-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD69.5/pc - USD13999/pc

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                WCB Bolted Bonnet Gate Valve, Bolted Bonnet Gate Valve Outside Screw And Yoke, Bolted Bonnet Gate Valve WCB


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Industrial Valve Product	Purpose:	Open And Shut Off Pipeline
Medium Type:	Water, Steam And Oil	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure	Driven Method:	Electric Actuator
Body Material:	Cast Steel	Seal Type:	Hard Seal
Quality Warranty:	18 Months	Customized Support:	OEM And ODM Service Available
Name:	Rising Stem Gate Valve

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Industrial Valve Product
Purpose:	Open And Shut Off Pipeline
Medium Type:	Water, Steam And Oil
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure
Driven Method:	Electric Actuator
Body Material:	Cast Steel
Seal Type:	Hard Seal
Quality Warranty:	18 Months
Customized Support:	OEM And ODM Service Available
Name:	Rising Stem Gate Valve

WCB Bolted Bonnet Gate Valve Outside Screw And Yoke With Electric Actuator

WCB Bolted Bonnet Outside Screw And Yoke Wedged Gate Valve With Electric Actuator

Product Introduction:

Electric gate valves are equipment used in liquid, gas, and air system pipelines.

Electric gate valves are controlled by electric actuators to achieve the opening and closing of gate valves and control the flow of fluid in pipelines. It can be divided into two parts: the upper part is an electric actuator, and the lower part is a gate valve. The action force distance of electric actuators is larger than that of valves, and the opening and closing speed of electric gate valves can be adjusted. Gate valve structure is simple, easy to maintain, responsive, safe and reliable, and easy to maintain.

The electric gate valve is composed of a straight stroke electric actuator and a straight stroke gate valve, which realizes the up and down movement of the valve plate to control the fluid flow in the pipeline. Usually used in conjunction with highly automated equipment, this valve has the best horizontal installation and adjustment accuracy.

Product Technical Parameters:

Type Number:		Z941W-JGPV
Nominal Pressure PN(MPa)		1.0 - 10.0
Nominal Diameter DN(mm)		15～300
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		CF8, CF8M, CF3, CF3M,
Medium suitable:		Water, steam, oil and nitric acid etc corrosive medium
Working temperature		200≤℃
Connection type		Flange
Operational method		Handwheel +electric actuator

Application Industries:

1. The gate valve sealing structure of the valve body and valve cover gasket ensures safe and reliable use.
2. The gate valve has good sealing performance, convenient maintenance, cost savings, and good valve disc interchangeability.
3. The gate valve sealing surface has high hardness, is wear-resistant, scratch resistant, and has a long service life.
The valve stem is made of nitrided steel, with surface nitriding treatment, high hardness, scratch resistance, corrosion resistance, and long service life.
4. The electric device is equipped with a torque control mechanism, on-site operation mechanism, and manual/electric switching mechanism. In addition to on-site operation, remote operation, PLC control, and intelligent control of 4-20mA current input and output can also be carried out.
