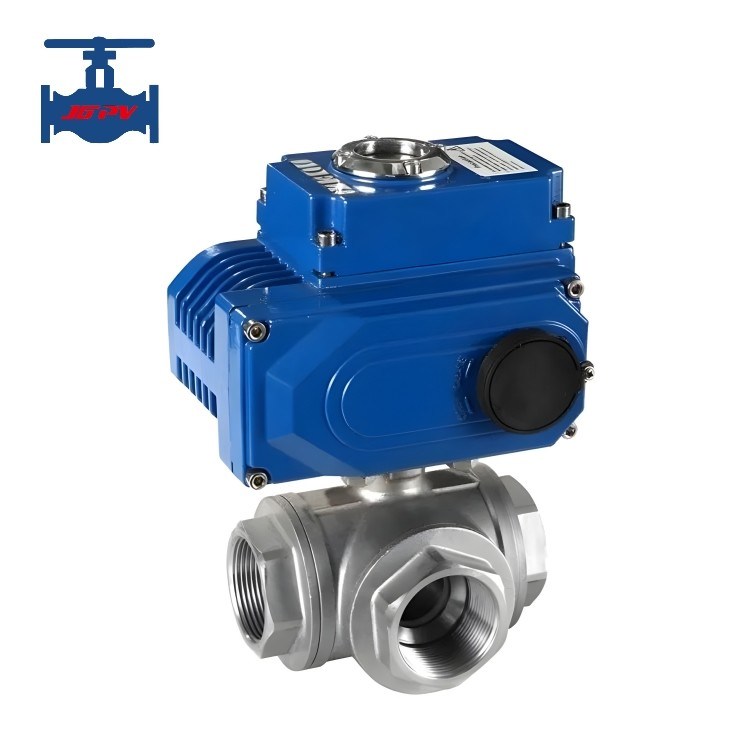

Three Way Stainless Steel Ball Valves T Type / L Type With Electric Actuator

Name: Three Way Stainless Steel Ball Valves T Type / L Type With Electric Actuator
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Q914F-16P-2PC
Price: 539.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Q914F-16P-2PC

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD79.9/Set to USD999.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Three Way Stainless Steel Ball Valves, SS Three Way Ball Valve T Type, Stainless Steel Three Way Ball Valve  L Type


Name:	Three Way Stainless Steel Ball Valves	Standard Or Non-Standard:	Standard
Application:	General	Product Function:	Fluid Direction Adjustment
Working Temperature:	Normal Temperature	Pressure Application:	Low Pressure
Medium Application:	Corrosive Medium	Port Size:	DN15 - DN50
Connection:	BSP, NPT, Weldable	Quality Warranty:	18 Months
Test Standard:	Strength Test, Sealing Test And Other Client Needs

Name:	Three Way Stainless Steel Ball Valves
Standard Or Non-Standard:	Standard
Application:	General
Product Function:	Fluid Direction Adjustment
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure
Medium Application:	Corrosive Medium
Port Size:	DN15 - DN50
Connection:	BSP, NPT, Weldable
Quality Warranty:	18 Months
Test Standard:	Strength Test, Sealing Test And Other Client Needs

Three Way Stainless Steel Ball Valves T Type / L Type With Electric Actuator

Stainless Steel T Type And L Type Three-Way Ball Valve With Electric Actuator

Product introduction:

Three way ball valves can adjust flow direction efficiently, and it is available in T and L shapes. T-shaped pipes can connect and cut off the third channel of three orthogonal pipes, playing a role in diversion and convergence. The L-three-way ball valve type can only connect two orthogonal pipelines and cannot maintain the interconnection of the third pipeline at the same time. It only plays a distribution role.

Electric ball valves including ball valve and electric actuator two parts, electric actuator is one the of most important actuators in industrial automation control systems. Electric three-way ball valve is mainly used to cut off or connect medium in pipelines, it can also be used for fluid regulation and control, and is a pipeline pressure element in industrial automation process control.

Product technical parameters:

Nominal Diameter DN (mm)		15-50
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
	Enclose (Water)	1.76
Main Components	Valve body	Cast steel and stainless steel
	Ball	Cast steel and stainless steel
	Seat	Soft seal / hard seal
	Axle	Stainless steel
Working temperature		120℃ - 300℃
Medium suitable		Water, steam, oil and corrosive mediums
Connection		BSPT, NPT, weldable, flange ends
Flow direction		T or L type
Driven method		ON/OFF or reguating electric actuator

Product features:

1. High control accuracy

2. Quick response

3. Convenient operation

4. Strong durability

5. Easy to maintain

6. High security
