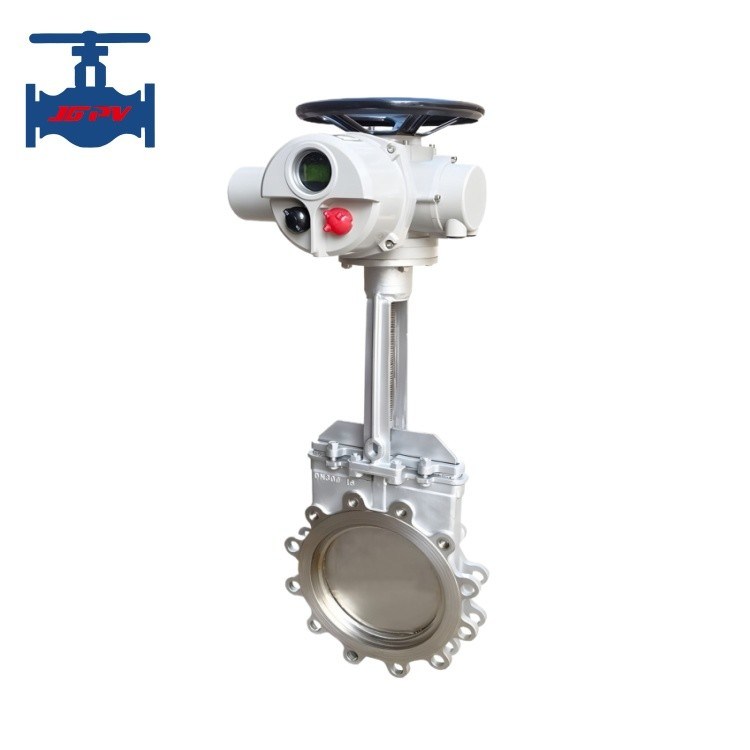

Class150 WCB CF8 CF8M Motorised Knife Gate Valve Cast Steel Stainless Steel ANSI Standard

Name: Class150 WCB CF8 CF8M Motorised Knife Gate Valve Cast Steel Stainless Steel ANSI Standard
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: PZ973H-150LB
Price: 1,033.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: PZ973H-150LB

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD67.9/Set - USD1999.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Motorised Knife Gate Valve Cast Steel, Motorised Knife Gate Valve Stainless Steel, CF8M Motorized Knife Gate Valve


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Industrial Automation Control Valve	Manufacturing Craft:	Casting
Pressure Nominal:	Class 150	Medium Type:	Pulp, Feed Water Mixture, Ash Slurry Etc
Driven Methold:	Electric Actuator	Connection:	ANSI Flanges
Customization Support:	OEM	Warranty:	18 Months
Name:	Electric Valve

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Industrial Automation Control Valve
Manufacturing Craft:	Casting
Pressure Nominal:	Class 150
Medium Type:	Pulp, Feed Water Mixture, Ash Slurry Etc
Driven Methold:	Electric Actuator
Connection:	ANSI Flanges
Customization Support:	OEM
Warranty:	18 Months
Name:	Electric Valve

Class150 WCB CF8 CF8M Motorised Knife Gate Valve Cast Steel Stainless Steel ANSI Standard

ANSI Class150 Cast Steel Stainless Steel WCB CF8 CF8M Motorised Knife Gate Valve

Product introductioin:

Knife type gate valve is flat valve plate bottom with knife-type oblique incision, with the function of cutting off the medium, so that the valve is not blocked by the medium.

Knife type gate valve is also known as knife-type gate valve, knife-type slurry valve, its opening and closing parts are the gate, the direction of the movement of the gate is perpendicular to the direction of the fluid, and the knife-type gate valve can only be fully opened and fully closed, not adjusted and throttled.

Pneumatic knife gate valve matched with pneumatic actuator, it can driven easily by compressed air, with single acting or double acting function, with low starting torque, excellent sensitivity and sensing speed.

Product technical paratmeters:

Diameter nominal DN(mm)		40～1200
Pressure nominal PN(MPa)		0.6～1.0
Pressure test Ps (MPa)	Strength test (Water)	0.9～1.5
	Sealing test (Water)	0.66～1.1
Medium applicable		Cement slurry, sand pulp, paper pulp, fiber pulp and other impurities in the mine pipeline
Connection way		Wafer, flange
Driven method		Electric actuator

Product features:

1. Remote control: The electric knife gate valve can be remotely controlled through a control system, which is very important for automated production lines. Valves can be easily opened and closed through preset programs or manual operations.

2. Good interchangeability: Due to the standard design of the electric knife gate valve, it has good interchangeability. This not only facilitates equipment maintenance and replacement, but also improves production flexibility.

3. Multiple control methods: In addition to traditional mechanical control methods, electric knife gate valves also support control through PLC, DCS and other control systems, further improving their automation level.
