Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: Z945X-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD129.5/pc - USD16999/pc
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs per month
Name: |
Resilient Seated Gate Valves |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve Product |
Purpose: |
Pipeline Open And Close |
Medium Type: |
Water |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure |
Driven Method: |
Eelectric Way |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |
Name: |
Resilient Seated Gate Valves |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve Product |
Purpose: |
Pipeline Open And Close |
Medium Type: |
Water |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure |
Driven Method: |
Eelectric Way |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |

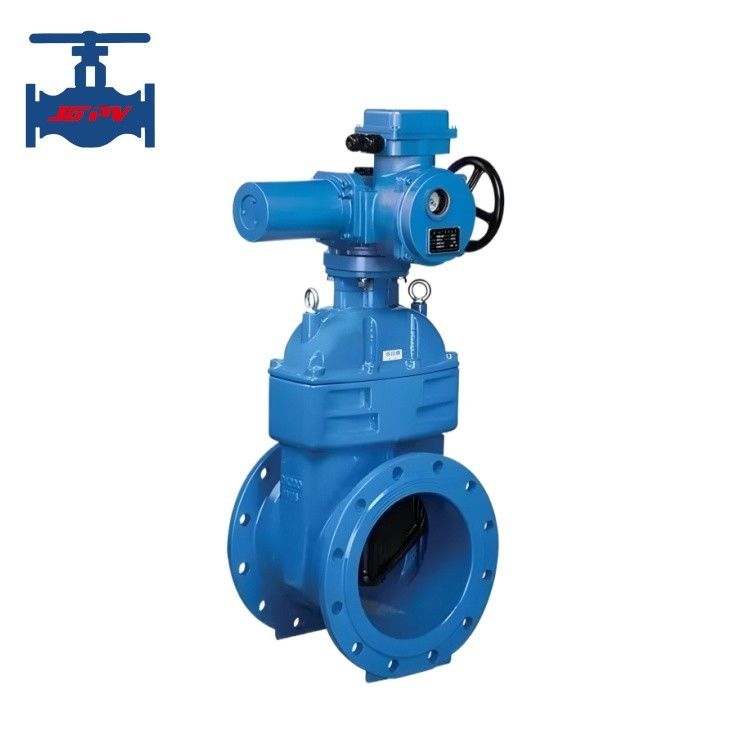

Normally ON-OFF Function Motorized Resilient Seated Gate Valve
Product Introduction:
Electric resilient seated gate valves is valve drivened by electric actuator, which including two parts, top part is an electric actuator, bottom part is a non-rising stem resilient seated gate valve, electric actuator will control valve automaticlly to achieve the opening flow of fluid in pipelines. The action force distance of electric actuators is larger than that of valves, and the opening and closing speed of electric gate valves can be adjusted. Gate valve structure is simple, easy to maintain, responsive, safe and reliable, and easy to maintain.
The electric gate valve is composed of a straight stroke electric actuator and a straight stroke gate valve, which realizes the up and down movement of the valve plate to control the fluid flow in the pipeline. Usually used in conjunction with highly automated equipment, this valve has the best horizontal installation and adjustment accuracy.
Product Technical Parameters:
| Type Number: | Z941X-JGPV | |
| Nominal Pressure PN(MPa) | 1.6 | |
| Nominal Diameter DN(mm) | 50～600 | |
| Test pressure (MPa) | Strength (water) | 1.5 times of pressure nominal |
| Sealing (water) | 1.1 times of pressure nominal | |
| Raw material | Ductile iron | |
| Medium suitable: | Water | |
| Working temperature | ≤80℃ | |
| Connection type | Flange | |
| Operational method | Handwheel +electric actuator | |
Application Industries:
1. The gate valve sealing structure of the valve body and valve cover gasket ensures safe and reliable use.
2. The gate valve has good sealing performance, convenient maintenance, cost savings, and good valve disc interchangeability.
3. The gate valve sealing surface has high hardness, is wear-resistant, scratch resistant, and has a long service life.
The valve stem is made of nitrided steel, with surface nitriding treatment, high hardness, scratch resistance, corrosion resistance, and long service life.
4. The electric device is equipped with a torque control mechanism, on-site operation mechanism, and manual/electric switching mechanism. In addition to on-site operation, remote operation, PLC control, and intelligent control of 4-20mA current input and output can also be carried out.
