Bellow Sealed Pressure Reducing Valve

Name: Bellow Sealed Pressure Reducing Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Y14X-JGPV
Price: 69.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: Y14X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD59.9/Set to USD79.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Bellow Sealed Pressure Reducing Valve, bellows type pressure reducing valve


Name:	Pressure Reducing Valve	Standard Or Non-standard:	Standard
Application:	General	Medium Type:	Water, Steam And Oil Etc.
Working Temperature:	Normal Temperature	Pressure Application:	Low Pressure
Structure:	Direct Action	Manufacturing Craft:	Casting
Port Size:	DN15-DN25	Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months

Name:	Pressure Reducing Valve
Standard Or Non-standard:	Standard
Application:	General
Medium Type:	Water, Steam And Oil Etc.
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure
Structure:	Direct Action
Manufacturing Craft:	Casting
Port Size:	DN15-DN25
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months

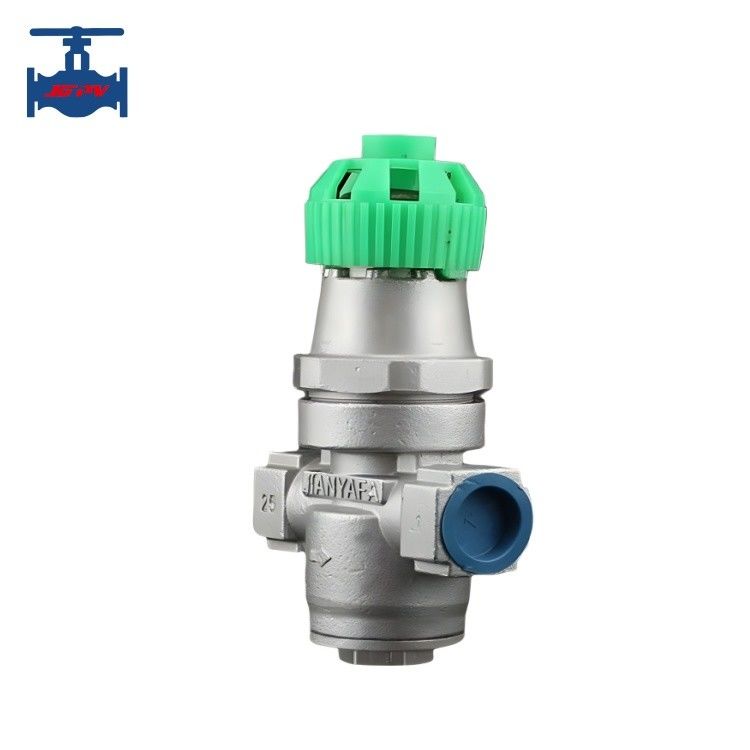

Bellow Sealed Pressure Reducing Valve

Stainless Steel Bellow Sealed Pressure Reducing Valve For Pressure Precision Control

Product introduction:

This bellows type pressure reducing valve is mainly composed of bellow pipe, adjusting springs, valve seat, valve disc, and other components. It uses bellow pipe to sense the pressure of the valve and drive the valve disc, changing and controlling the valve opening angle to achieve pressure reduction and pressure stabilization. This valve is a direct acting type, which using bellow pipe as sensitive components to automatically change the opening of the valve disc using the predetermined setting of the adjusting spring, so as to reduce the inlet pressure to a desired outlet pressure, When the inlet pressure and outlet flow rate change within a certain range, it can use its own energy to automatically maintain the outlet pressure within a certain range.

Product parameters:

No.	Part name	Raw material
1	Body	304
2	Base	304
3	Bonnet	Cast aluminium alloy
4	Stem	2Cr13
5	Seat	2Cr13
6	Ball	2Cr13
7	Bellow	304
8	Wheel	Heat resistant plastic
9	Main valve spring	50CrVA
10	Adjusting spring	60Si2Mn

Product features:

1. Small size and light weight.

2. The pressure detection device uses bellow pipe with good durability.

3. By rotating the plastic hand-wheel, the pressure can be adjusted without the need for tools, making it easy to operate (counterclockwise rotation increases the pressure; clockwise rotation reduces the pressure)

4. Equipped with a filter screen inside, it can protect the valve performance from dust and impurities

5. Adopting internal thread connection for easy installation

6. The valve body and valve seat are made of stainless steel material, with a long service life.
