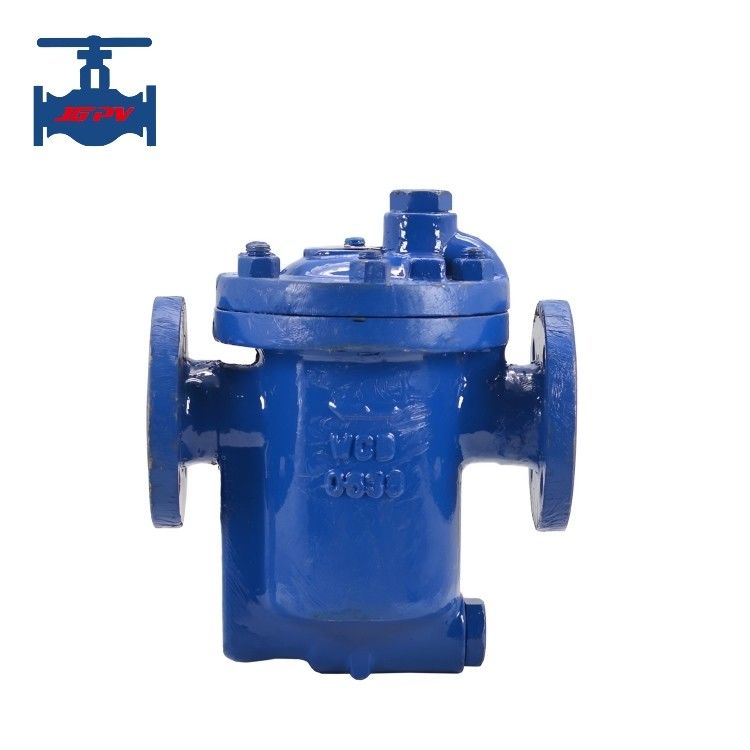

Inverted Bucket Steam Trap Valve With Flange Connection

Name: Inverted Bucket Steam Trap Valve With Flange Connection
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: CS-981F-JGPV
Price: 174.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: CS-981F-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD39.9/Set - USD309.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Inverted Bucket Steam Trap Valve, ASTM Inverted Bucket Steam Trap


Standard Or Non-standard:	Standard	Application:	General
Purpose:	Prevent Steam Leakage	Product Features:	Improve Thermal Efficiency
Manufacturing Craft:	Casting	Raw Material:	WCB, CF8
Port Size:	DN15-DN50	Working Temperature:	Up To 300 Degrees Celsius
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Steam Trap Valve

Standard Or Non-standard:	Standard
Application:	General
Purpose:	Prevent Steam Leakage
Product Features:	Improve Thermal Efficiency
Manufacturing Craft:	Casting
Raw Material:	WCB, CF8
Port Size:	DN15-DN50
Working Temperature:	Up To 300 Degrees Celsius
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Steam Trap Valve

Inverted Bucket Steam Trap Valve With Flange Connection

Cast Steel ASTM A216-WCB Inverted Bucket Steam Trap With Flange Connection

Product introduction:

Inverted bucket steam trap is the reliable steam trap, which provides efficient condensate drainage of all types of steam-using equipment. It is used inverted bucket to work in a tough metal package with an integral strainer,because they operate efficiently for longer periods of time, it also add solid energy savings to lower replacement/labor costs. All inverted bucket steam traps are repairable for even bigger maintenance savings. A unique leverage system multiplies the force provided by the bucket to open the valve against system pressure. The mechanism is free-floating, and hasno fixed pivots to create wear or friction.

Because the mechanism is located at the top of the trap, no dirt can collecton the orifice. Small particles of dirt are held in suspension until dischargedby the full differential purging action when the bucket sinks, pulling the valveoff the seat.
The discharge orifice is surrounded by a water seal, preventing live steam loss.Automatic air venting is provided by a small vent hole in the bucket, whichprovides continuous automatic air and CO, venting at steam temperature.

Product component and performance:

Min. working pressure	0.01MPa	Normal working temperature	300℃ / 350 ℃
Mini sub-cooling temperature	≤0℃	MAX Working temperature	425℃ / 540 ℃
Max load leakage rate	≤0	Medium application	Saturated vapor, condensate
Max back pressure	85%	Air vent device	CF8 - SS304
Valve body	WCB, CF8	Bucket	CF8 - SS304
Bonnet	WCB, CF8	Filter	CF8 - SS304
Seat	Stainless steel	Connection	Welded, threaded, flange connection

Product application:

1. Simple structure and easy to maintain.

2. Adopt spherical sealing structure, and made of cobalt-chromium-tungsten alloys with long service life.

3. The valve seat and the spherical valve core are made of hard alloys, which are good sealing, wear-proof, anti-corrosion and durable, no concentrated wear with happen.

4. The action of closing the valve seat hole has the features soft landing because the floating lever mechanism is adopted, thus increasing the service life.

5. The spherical valve core is with good air tightness, it is machined abrasively, and matched with the valve seat on the mechanical device, resistant to water attack. The open bucket structure won’t be damaged by water attack.
