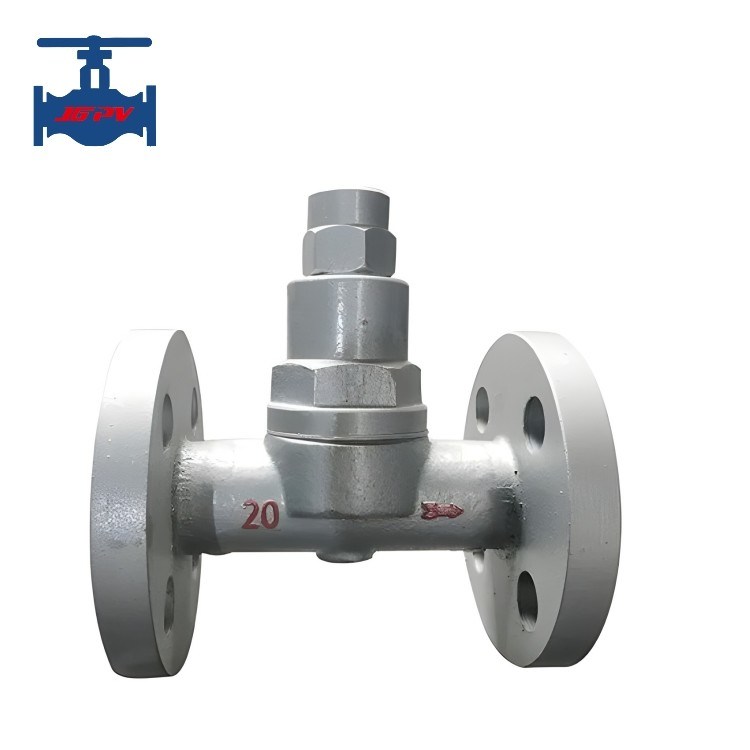

Adjustable Cast Steel Bimetallic Steam Trap with Large Drainage Capacity and Flange Connection

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Adjustable Steam Trap, Cast Steel Bimetallic Steam Trap, Large Drainage Capacity Flange Steam Trap


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Adjustable Cast Steel Bimetallic Steam Trap with Large Drainage Capacity and Flange Connection

Adjustable Bimetallic Cast Steel Flange Steam Trap

Product Introduction

The adjustable bimetallic strip steam trap features a unique structure with excellent performance characteristics. It offers large drainage capacity, adjustable steam leakage temperature, and a subcooling degree of approximately 2°C. This design effectively eliminates cold air and other non-condensable gases while preventing steam blockage. The replaceable internal components facilitate easy maintenance and adjustment.

Utilizing thermal sensing principles to discharge condensate, this steam trap efficiently handles large start-up loads. When system temperature and pressure increase, the stacked nickel chromium bimetallic components expand, causing the drain valve to close tightly when steam reaches it, thereby preventing steam loss and ensuring efficient system operation with energy savings.

Technical Parameters

Model/Project	CS17H-16C	CS17H-25	CS17H-40	Unit
CS47H-16C \| CS47H-25 \| CS47H-40	CS17H-16C	CS17H-25	CS17H-40	-
CS67H-16C \| CS67H-25 \| CS67H-40	CS17H-16C	CS17H-25	CS17H-40	-
Work Pressure	1.6	2.5	4	Mpa
Shell Test Pressure	2.4	3.8	6	-
Operating Temperature	203	220	247	℃
Permissible Temperature	425	425	425	℃
Working Medium	Steam and Condensate Water

Product Features

Check Valve Function: The valve ball immediately closes the discharge hole during pipeline backflow, eliminating the need for additional devices.
Exhaust Air and Water: Pipeline pressure or gravity opens the valve to rapidly expel air and water, significantly reducing heating time.
Condensate Discharge: Condensate gradually reduces the thermal tension of bimetallic components, causing the discharge hole to open progressively for smooth, unobstructed condensate removal.
