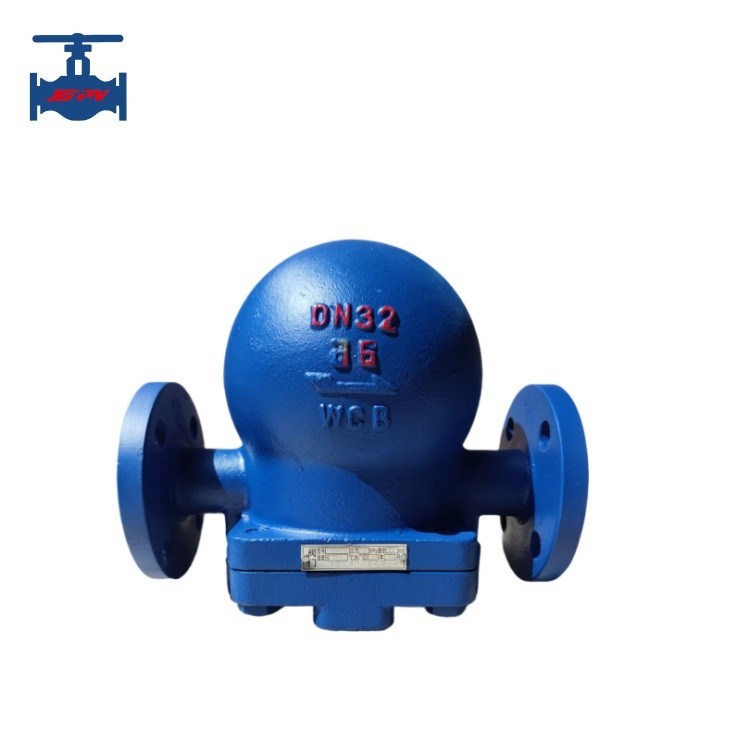

Cast Steel ASTM A216-WCB Level Ball Float Steam Trap For Air And Steam Use

Name: Cast Steel ASTM A216-WCB Level Ball Float Steam Trap For Air And Steam Use
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: CS-981F-JGPV
Price: 174.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: CS-981F-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD39.9/Set - USD309.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Cast Steel Ball Float Steam Trap, Level Ball Float Steam Trap, A216-WCB Ball Float Type Steam Trap


Standard Or Non-standard:	Standard	Application:	General
Purpose:	Prevent Steam Leakage	Product Features:	Improve Thermal Efficiency
Manufacturing Craft:	Casting	Raw Material:	WCB, CF8
Port Size:	DN15-DN50	Working Temperature:	Up To 300 Degrees Celsius
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Steam Trap Valve

Standard Or Non-standard:	Standard
Application:	General
Purpose:	Prevent Steam Leakage
Product Features:	Improve Thermal Efficiency
Manufacturing Craft:	Casting
Raw Material:	WCB, CF8
Port Size:	DN15-DN50
Working Temperature:	Up To 300 Degrees Celsius
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Steam Trap Valve

Cast Steel ASTM A216-WCB Level Ball Float Steam Trap For Air And Steam Use

Cast Steel ASTM A216-WCB Level Ball Float Steam Trap For Air And Steam Use

Product introduction:

FT44 series level ball float steam trap is able to discharge saturated condensate automatically, quickly and continuously, it is guaranteed that no water will collect in the heating equipment, thus reaching the highest heat exchange efficiency.

The valve core and the valve seat are made of cobalt-chromium-tungsten alloy, which are wear-proof, anti-corrosion and durable. The single valve seat level ball float is ground and sealed with the advanced structure of mobile semicircular sphere, its sealability is excellent. It is applied circular sphere sealing method and no concentrated wear will happen at work, which endows it with long service life, this trap can adjust the openness of the valve seat hole automatically, it is with stable performance and able to work continuously, it won’t be affected by change of of steam pressure.

Product component and performance:

Model	Port size	Connection	Working pressure difference range	Pressure nominal	Raw material
FT14	15-20	Female threaded BSP/NPT	0.01-1.4 MPa	16 bar	WCB+304
FT14	25	Female threaded BSP/NPT
FT44	15-20	Flange, GB, ANSI
FT44	25
FT44	32-50

Product application:

1. the single valve seat lever float ball steam trap adopts spherical sealing method, no concentrated wear will happen, when the valve seat hole is closed, it has the features of soft landing, thus increasing the service life.

2. The double-valve seat lever ball float steam trap adopts our company’s inventive patent technology of completely balanced double valve seat, it opens and closes stably and reliably, and can perform well for a long term, in the working conditions where a large quantity of condensate need t be drained, its excellent performance will be fully shown.

3. The automatic air exhaust device adopts the internationally advance elements, the 3rd generation spherical sealing elements in Y series, it is able to exhaust non-condensing cold and hot gases, sensitively and reliably, and has a long service time.
