Free Ball Floating Steam Trap
, Stainless Steel Ball Float Steam Trap

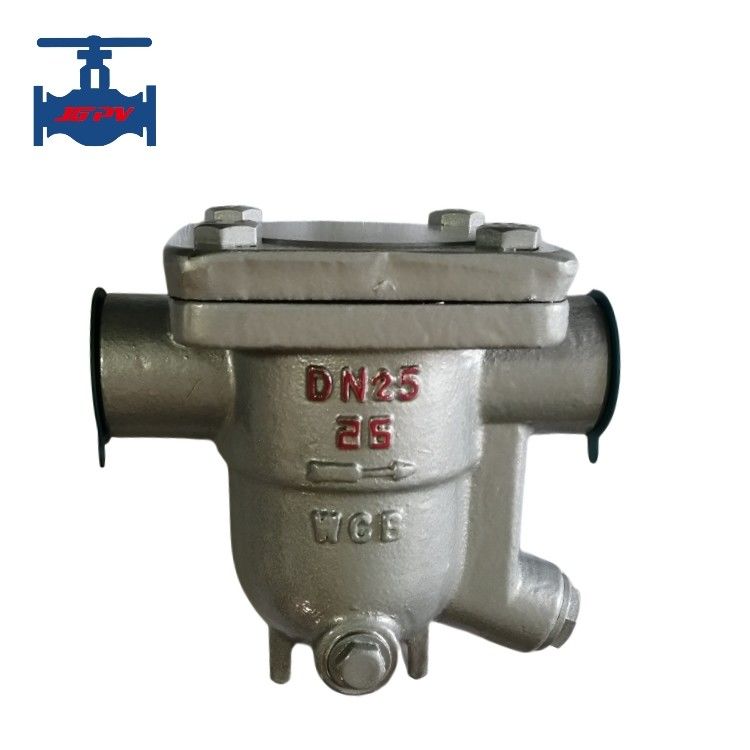

Cast Steel Stainless Steel Free Ball Floating Steam Trap With Auto Air Vent
Product introduction:
Auto free ball float steam trap series use the principle of buoyancy, float according to the amount of condensed water changes with the water level and rise, automatically adjust the opening of the valve seat hole, continuous discharge of condensed water.When the condensate stops entering, the float drops to the bottom by its own weight and closes the drain seat hole.Because the drainage valve seat hole is below the condensate water level, the water vapor is separated naturally and the water seal is formed to achieve no steam leakage.
Product component and performance:
| Strength test |
1.5 times of pressure nominal |
|
Valve body |
Cast steel and stainless steel |
| Performance test |
Air |
0.4～0.6Mpa |
Bonnet |
Cast steel and stainless steel |
| Water |
0.4～0.6Mpa |
Float ball |
Stainless steel |
| TMO |
350℃ |
Valve seat |
Stainless steel |
| PMA |
0.5～4.0Mpa |
Filter |
Stainless steel |
| TMA |
280℃~540℃ |
Shield |
Special steel |
| LNT |
≈0℃ |
Auto device |
A105+ SS |
| MRBP |
90 % |
Sealing |
PPL/H62 |
| LLR |
≈0 |
Bolt |
45/35CrMoA |
| Medium |
Steam condensate |
Nut |
45 |
Product Discharge capacity under different pressure:
| Port size |
15～25 |
32～50 |
65～80 |
100～125 |
125～150 |
|
Pressure
Mpa
|
B |
D |
F |
G |
G |
| Max discharge capacity (Kg/h) |
| 0.5 |
550 |
1000 |
1900 |
2270 |
2730 |
| 0.6 |
410 |
850 |
1630 |
1800 |
2300 |
| 1.0 |
360 |
790 |
1300 |
1660 |
2120 |
| 1.6 |
350 |
740 |
900 |
1290 |
1990 |
Product advantages:
1. Continuous discharge of saturated condensate heating equipment without water accumulation, thus obtaining the highest thermal efficiency.
2. The float ball can automatically adjust the opening of the valve seat hole, with continuous work and stable performance.
3. Good air exhaust performance, automatic exhaust device, no air lock phenomenon, smooth work without noise.
4. Automatic free floating ball trap is an automatic valve, especially for low pressure, low displacement and high temperature stability requirements, not with condensed water steam equipment is more suitable.
4. Automatic free floating ball trap can continuously drain water, stable performance, large displacement, small leakage.
5. It can drain continuous saturated water, so that the condensate storage is less, the heating temperature is fast and the heating temperature is stable
6. Automatic air exhaust device, no steam lock phenomenon, work balance and without noise.
