Thermostatic Membrane Steam Trap with Stainless Steel Construction Zero Leakage and High Back Pressure Rate

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Construction Steam Trap Valve, Zero Leakage Bellows Steam Trap, High Back Pressure Rate Thermostatic Membrane Steam Trap


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

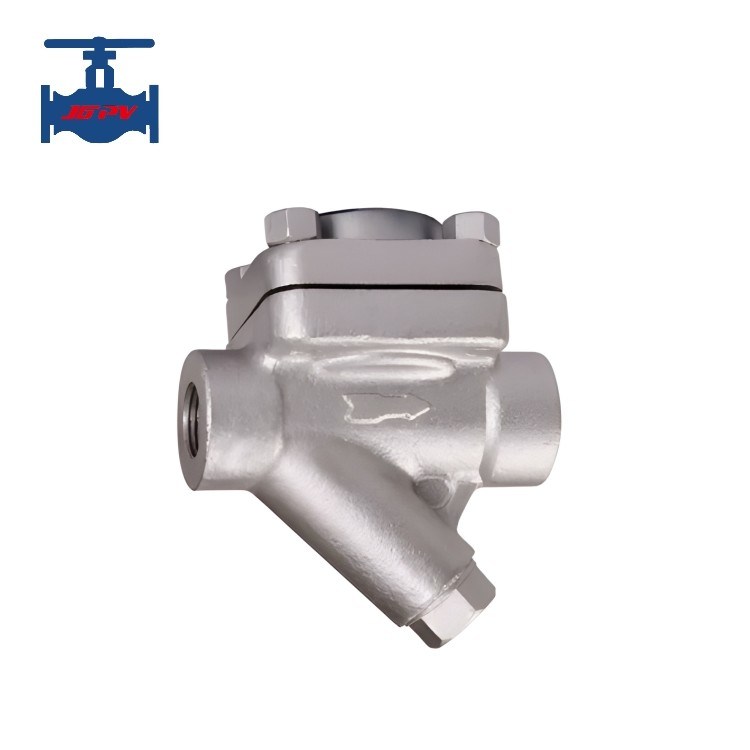

Thermostatic Membrane Steam Trap with Stainless Steel Construction Zero Leakage and High Back Pressure Rate

Thermostatic Membrane Type Steam Trap

Product Overview

The bellows type steam trap vaporizes or condenses the temperature sensing liquid inside the bellows according to the temperature changes inside the valve chamber. The internal pressure of the bellows changes, driving the bellows to move the valve core to open and close the valve seat hole, achieving steam blocking and drainage.

This valve is currently widely used as a practical, energy-saving, and environmentally friendly drain valve. It is used for steam main pipelines in heating streams, small heating equipment, and material tracing in the petrochemical industry. It is the preferred drain valve for valve material tracing.

Technical Specifications

Parameter	1.6 MPa	2.5 MPa	4 MPa	Unit
Nominal Pressure	1.6	2.5	4	Mpa
Shell Test Pressure	2.4	3.8	6	-
Maximum Work Pressure	1.6	2.5	4	-
Maximum Operating Temperature	203	220	247	℃
Maximum Allowable Temperature	425	425	425	-
Working Medium	Steam and Condensate Steam

Key Features

Simple structure and easy maintenance
All components are made of alloy treated stainless steel, which is wear-resistant, corrosion-resistant, and has a long service life
Good air discharge capacity, quick drainage, and flexible installation method
Multiple membrane box combinations can be achieved, suitable for large displacement applications
Zero leakage, with a back pressure rate of over 75%
