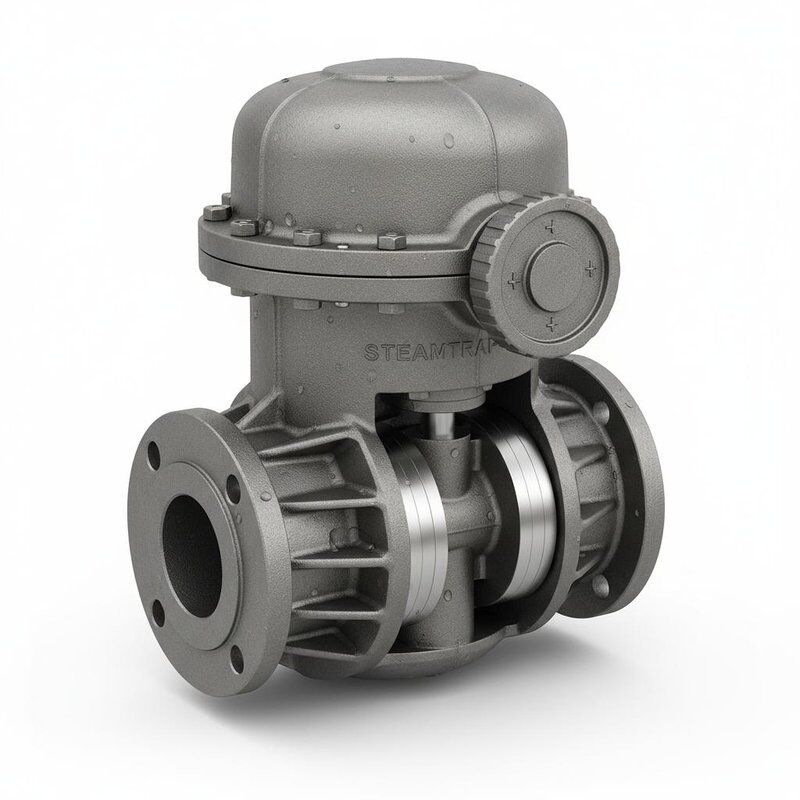

Cast Steel Adjustable Bimetallic Steam Trap Valve with Large Drainage Capacity and DN15-DN50 Port Size

Name: Cast Steel Adjustable Bimetallic Steam Trap Valve with Large Drainage Capacity and DN15-DN50 Port Size
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: CS46H-JGPV
Price: 209.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: CS46H-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD19.9/Set - USD399.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                cast steel steam trap valve, adjustable bimetallic steam trap, DN15-DN50 steam trap valve


Standard Or Non-standard:	Standard	Application:	General
Purpose:	Prevent Steam Leakage	Product Features:	Improve Thermal Efficiency
Raw Material:	WCB, CF8, CF8M	Port Size:	DN15-DN50
Connection:	Flange, BSP NPT Threaded	Working Temperature:	Up To 300 Degrees Celsius
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Steam Trap Valve

Standard Or Non-standard:	Standard
Application:	General
Purpose:	Prevent Steam Leakage
Product Features:	Improve Thermal Efficiency
Raw Material:	WCB, CF8, CF8M
Port Size:	DN15-DN50
Connection:	Flange, BSP NPT Threaded
Working Temperature:	Up To 300 Degrees Celsius
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Steam Trap Valve

Cast Steel Adjustable Bimetallic Steam Trap Valve with Large Drainage Capacity and DN15-DN50 Port Size

Cast Steel Thermostatic Adjustable Bimetallic Steam Trap Displacement

Product Overview

Cast Steel Thermostatic Adjustable Bimetallic Small Displacement Steam Trap

This adjustable bimetallic steam trap features a unique structure with excellent performance characteristics. It offers large drainage capacity, adjustable leakage temperature, and sub-cooling of approximately 2℃, effectively eliminating cold air and non-condensable vapors while preventing steam blockage.

With replaceable internal components, maintenance and adjustments are simplified. Operating on thermal sensing principles to discharge condensate, it efficiently handles substantial start-up loads. As system temperature and pressure increase, the stacked nickel chromium bimetallic components expand, tightly closing the drain valve when steam reaches it to prevent steam loss and ensure efficient system operation with energy savings.

Technical Specifications

Model	CS46H \| CS47H
Purpose	Discharge moisture from steam
Pressure Nominal	1.6-6.4MPa
Port Size	DN15-DN150
Raw Material	Cast steel and stainless steel
Operation	Automatic
Connection	Flange and threaded connection
Medium Type	Steam and condensed water
Working Temperature	200℃

Key Features & Applications

The thermosensitive element is manufactured from imported materials, ensuring high sensitivity, durability, and long service life
Adjustable condensate discharge temperature enables effective utilization of condensate sensible heat
Automatic drainage adjustment with fixed subcooling ensures timely condensate discharge
Excellent water resistance and automatic air discharge performance
Compact design allows installation at any angle with superior flexibility
Forms water seal with high-temperature condensate in front of the valve, preventing steam leakage
Large circulation area filter screen enables online replacement of internal components and impurity cleaning for convenient maintenance
