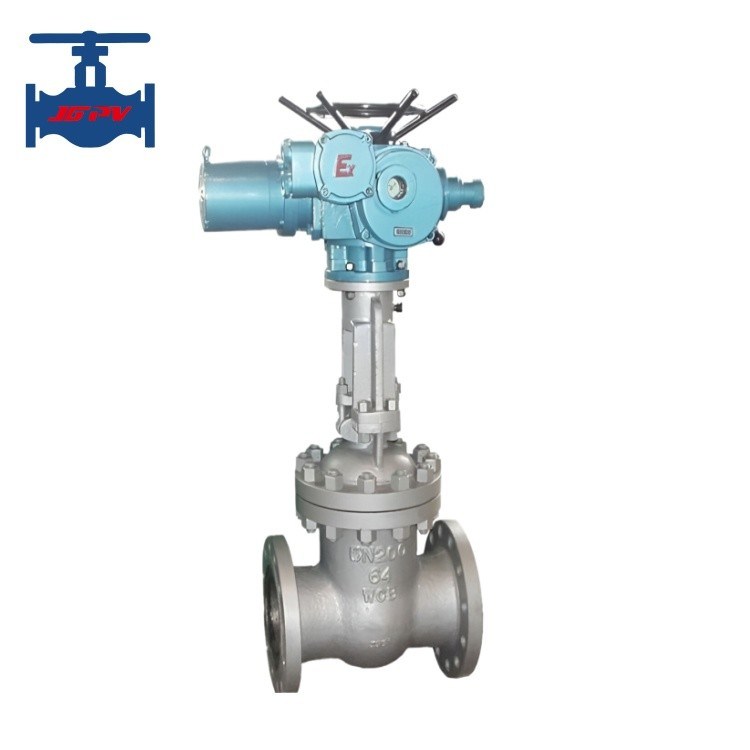

Electric Actuator Valve Cast Steel Stainless Steel Flanged Gate Valve WCB CF8 CF8M

Name: Electric Actuator Valve Cast Steel Stainless Steel Flanged Gate Valve WCB CF8 CF8M
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z941H-150LB
Price: 2,083.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: Z941H-150LB

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD167.9/Set - USD3999.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Electric Actuator Valve Cast Steel, Stainless Steel Flanged Gate Valve CF8M, Stainless Steel Flanged Gate Valve WCB


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Industrial Automation System Use Valve	Manufacturing Craft:	Casting
Pressure Nominal:	Class 150-600	Medium Type:	Water, Steam And Oil Etc.
Driven Methold:	Electric Actuator	Connection:	ANSI Flanges
Customization Support:	OEM	Warranty:	18 Months
Name:	Electric Valve

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Industrial Automation System Use Valve
Manufacturing Craft:	Casting
Pressure Nominal:	Class 150-600
Medium Type:	Water, Steam And Oil Etc.
Driven Methold:	Electric Actuator
Connection:	ANSI Flanges
Customization Support:	OEM
Warranty:	18 Months
Name:	Electric Valve

Electric Actuator Valve Cast Steel Stainless Steel Flanged Gate Valve WCB CF8 CF8M

Electric Actuator Driven Cast steel Stainless Steel WCB CF8 CF8M Flanged Gate Valve

Product technical paratmeters:

Diameter nominal DN(mm)		40～1200
Pressure nominal PN(MPa)		0.6～1.0
Pressure test Ps (MPa)	Strength test (Water)	0.9～1.5
	Sealing test (Water)	0.66～1.1
Medium applicable		Cement slurry, sand pulp, paper pulp, fiber pulp and other impurities in the mine pipeline
Connection way		Wafer, flange
Driven method		Electric actuator

Product features:

1. Remote control: The electric knife gate valve can be remotely controlled through a control system, which is very important for automated production lines. Valves can be easily opened and closed through preset programs or manual operations.

2. Good interchangeability: Due to the standard design of the electric knife gate valve, it has good interchangeability. This not only facilitates equipment maintenance and replacement, but also improves production flexibility.

3. Multiple control methods: In addition to traditional mechanical control methods, electric knife gate valves also support control through PLC, DCS and other control systems, further improving their automation level.
