Y-Type Filter with Sewage Outlet for Water Steam Oil

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Y-type filter with sewage outlet, water steam oil filtration filter, industrial Y-type filter with warranty


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Function：:	Condensate Drain
Connection::	Threaded / Flanged / Welded	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Function：:	Condensate Drain
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

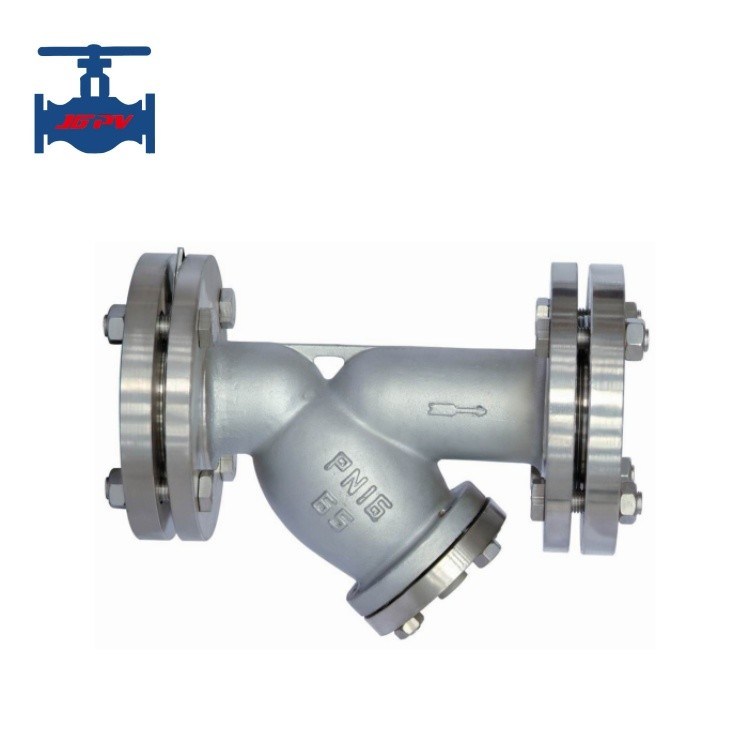

Y-Type Filter with Sewage Outlet for Water Steam Oil

Y-type Filter

Product Specifications

Attribute	Value
Application	General
Certificate	ISO9001, ISO14001
Medium Type	Water, steam and oil etc.
Function	Condensate drain
Connection	Threaded / Flanged / Welded
Standard Or Non-Standard	Standard
Flow way	Two way
Actuation	Manual, Electric, Pneumatic, Automatic
Sealing Performance	Sealing
Working Temperature	Normal Temperature And High Temperature
Pressure Application	Normal Pressure
Quality Warranty	18 Months

Product Overview

The GL41W Y-type filter features an innovative design with a sewage outlet and ball valve for convenient operation. This industrial-grade filter eliminates the need to remove blind flanges during maintenance, significantly improving efficiency and reducing costs.

Technical Parameters

Parameter	Specification
Nominal Diameter DN(mm)	15～500
Nominal Pressure PN(MPa)	1.0～2.5
Test Pressure Ps(MPa)	Strength Test: 1.5～3.75 Tightness Test: 1.1～2.75
Main Parts	Valve Body: Cast Iron / Carbon Steel / Stainless Steel Filter Screen: Stainless Steel
Filtration Precision	10～480
Applicable Medium	Medium containing a small amount of solid impurities
Applicable Temperature	-80℃～400℃
Connection Type	Flanged Type

Key Features

Advanced Structure: Y-type design provides larger filtering area and higher dust removal efficiency
Superior Material: 304 stainless steel filter screen and CF8 stainless steel valve body for excellent corrosion resistance
Convenient Blowdown: Integrated ball valve allows operation without removing blind flange
Easy Maintenance: Detachable filter cartridge simplifies cleaning and replacement
Wide Application: Suitable for pipeline systems in petroleum, chemical, power, metallurgy, and pharmaceutical industries
