ISO Certified Static Balancing Valve with Digital Locking Device and 18 Months Warranty for HVAC Systems

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: T/T,L/C,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                ISO Certified Static Balancing Valve, Digital Locking Device Balancing Valve, 18 Months Warranty Balancing Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

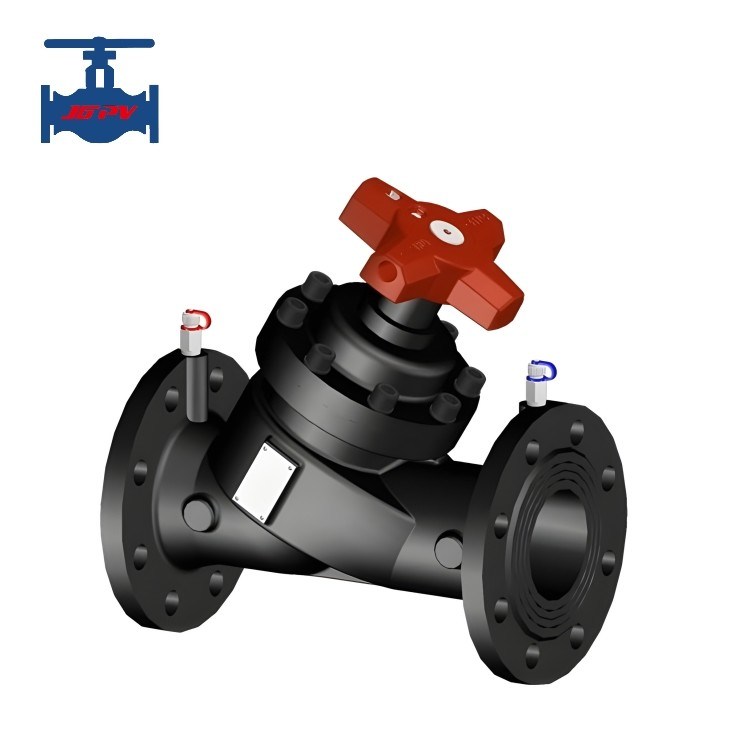

ISO Certified Static Balancing Valve with Digital Locking Device and 18 Months Warranty for HVAC Systems

Static Balancing Valve

Product Overview

The new digital lock balance valve is an energy-saving valve with special functions featuring digital display and locking mechanisms. Designed for precise flow control in heating systems, it enables accurate pressure drop and flow rate adjustment to optimize thermal distribution in industrial and civil building heating networks.

Key Features

Precision adjustment capability with 1/10 turn resolution
Superior shut-off performance
Equal percentage characteristic curve for optimal flow control
Patented locking mechanism for secure settings
Fixed flow coefficient per rotation for simplified flow calculation
Digital display for real-time monitoring

Technical Specifications

Parameter	Value
Nominal Diameter DN (mm)	32~300
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Valve body: QT450-10 Bonnet: QT450-10 Disc: QT450-10 Shaft: 2Cr13 Seat: PTFE Sealing ring: EPDM
Working temperature	-10~100℃
Medium suitable	Water
Characteristic curve	Equal percentage

System Benefits

Eliminates temperature imbalances in heating systems by enabling precise flow distribution. Reduces energy consumption by preventing "large flow, small temperature difference" scenarios. Achieves both hydraulic balance and energy savings in pipeline networks.
