Brass Static Balance Valve with Threaded Connection and ISO9001 Certification for HVAC Systems

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Brass Static Balance Valve, Threaded Static Balance Valve, ISO9001 Certified Brass Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

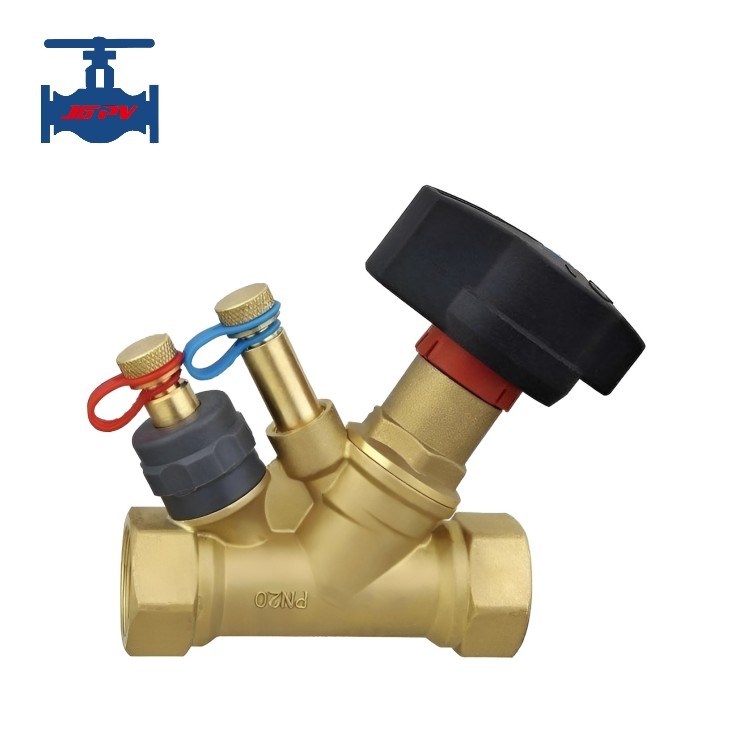

Brass Static Balance Valve with Threaded Connection and ISO9001 Certification for HVAC Systems

Static Balance Valve - Brass Threaded Connection

Static Balance Valve Brass Threaded Thread

Product Overview

For static imbalance problems in HVAC systems, installing a balance valve with dedicated intelligent instrument debugging effectively eliminates residual pressure head in circuits, ensuring each loop achieves design flow rates.

This specialized function valve features excellent flow regulation characteristics with a linear relationship between relative flow rate and relative opening. It includes precise valve opening indication (minimum reading: 1% of full opening), reliable opening locking memory device, shut-off functionality, and quantitative measurement and adjustment capabilities.

Technical Specifications

Parameter	Value
Model	SP45F-16Q
Test Pressure	2.4 MPa (24 kgf/cm²)
Working Pressure	≤1.6 MPa (16 kgf/cm²)
Operating Temperature	-10℃ to 100℃
Media	Water
Characteristic Curve	Equal Percentage
Installation Scope	Main trunk lines, branch lines, indoor water supply mains, branch risers, and multiple boiler systems

Installation Requirements

Install sufficient length of branch pipe sections before and after the static balance valve to ensure rated flow output
Verify installation position per drawings; recommended installation on HVAC system return pipeline
Check pipeline water flow direction; install strictly according to valve body flow arrow direction
Thoroughly clean pipeline debris before installation; prohibit welding slag, branches, stones, and other debris
Avoid excessive deformation and welding angles during pipeline flange welding that affect sealing surface flatness
After installation, fully open valve for repeated pipeline flushing until clean; prohibit valve closure during flushing
