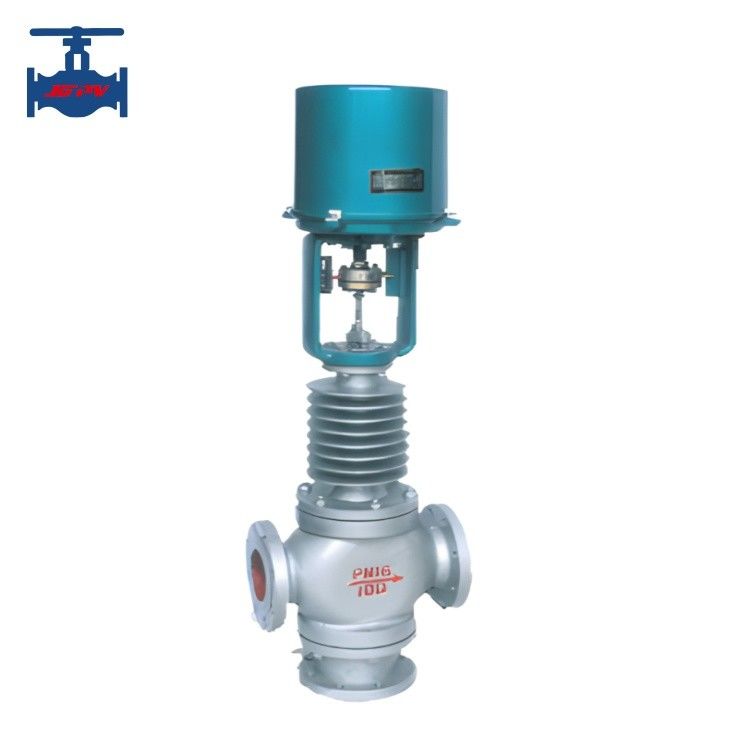

Electronic Control Valve Three Way Combined Flow Regulating Control Valve

WCB Electronic Type Electric Three-Way Combined Flow Regulating And Control Valve

Product introduction:

ZDLQ electronic electric three-way merging control valve and the SZDLX electronic electric three-way diversion control valve adopt a cylindrical thin-walled window shaped valve core guidance. Equipped with 9610L series electronic straight stroke electric actuator, accepting 0-10 or 4-20mA The DC signal drives the valve to open and close. The three-way combined flow regulating valve is used to mix two types of fluids, or the same type of fluid at different temperatures, to mix into the same temperature fluid. A three-way diverge valve divides a fluid into two paths.

The nominal diameter of electronic regulating valves ranges from 25mm to 300mm, and the nominal pressures of electronic regulating valves are 1.6, 4.0, and 6.4 MPa. Electronic regulating valves are suitable for fluid temperatures ranging from -60 ℃ to 450 ℃, and the control signal of electronic regulating valves is 0-10 or 4-20mA DC. The use of different valve covers can be divided into two types: ordinary type and heat dissipation type.

Product technical parameter:

Product features:

1. Electric control: The electric three-way regulating valve is controlled by an electric actuator, which can be easily connected and controlled with industrial automation systems, achieving remote control and real-time monitoring of the valve.
2. High performance regulation: Due to the use of a combined three-way design, the electric combined three-way regulating valve has high flow regulation performance. When the fluid flows through the valve, the regulating performance of the valve is stable and not easily affected by factors such as fluid properties and temperature.
3. High reliability: The components of the electric three-way regulating valve have been carefully designed and manufactured, with high reliability and service life. At the same time, the valve is also equipped with various safety protection measures, such as overload protection, overheating protection, etc., to ensure that the valve can safely shut down and give an alarm prompt in case of abnormal situations.
4. Easy to maintain: The maintenance of the electric three-way regulating valve is relatively simple and convenient. In daily use, it is only necessary to regularly check whether the sealing and lubricating parts of the valve are intact and undamaged. If faults or abnormal situations are found, they can be repaired and replaced in a timely manner.
