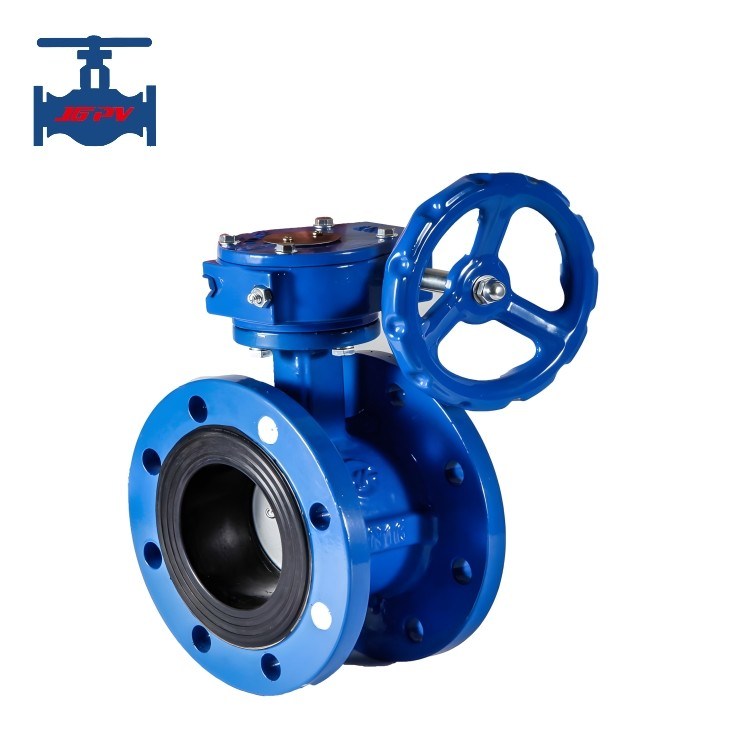

Ductile Iron Concentric Butterfly Valve Flanged Type EPDM Rubber Lined Butterfly Valve

Name: Ductile Iron Concentric Butterfly Valve Flanged Type EPDM Rubber Lined Butterfly Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: D341X-16Q
Price: 2,513.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: D341X-16Q

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD28.9/PC - USD4999.9/PC

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Ductile Iron Concentric Butterfly Valve, Concentric Butterfly Valve Flanged Type, EPDM Rubber Lined Butterfly Valve


Standard Or Non-Standard:	Standard	Standard:	ANSI, ASME, DIN, GB
Medium Type:	Water, Oil	Connection:	Flanges
Sealing Way:	EPDM Rubber Lined	Surface Treatment:	Fusion Epoxy Bonded
Working Temperature:	-20°C To 120°C	Pressure Application:	Low Pressure
Port Size:	DN50-DN1200	Quality Warranty:	18 Months
Name:	Rubber Lined Butterfly Valve

Standard Or Non-Standard:	Standard
Standard:	ANSI, ASME, DIN, GB
Medium Type:	Water, Oil
Connection:	Flanges
Sealing Way:	EPDM Rubber Lined
Surface Treatment:	Fusion Epoxy Bonded
Working Temperature:	-20°C To 120°C
Pressure Application:	Low Pressure
Port Size:	DN50-DN1200
Quality Warranty:	18 Months
Name:	Rubber Lined Butterfly Valve

Ductile Iron Concentric Butterfly Valve Flanged Type EPDM Rubber Lined Butterfly Valve

Ductile Iron Concentric Flanged Type EPDM Rubber Lined Butterfly Valve

Product introduction:

Concentric butterfly valve also named as center-lined butterfly valve, the common rubber lined butterfly valve belongs to this category. EPDM rubber lined butterfly valve is a very typical model, mainly used for opening and closing pipelines and regulating flow. Due to its simple structure, convenient operation, and good sealing performance, it is widely used in fields such as chemical, petroleum, power, and light industry. The main structure of the centerline lined butterfly valve includes the valve body, valve plate, and valve stem. Rubber lining is used between the valve plate and valve body, which can effectively prevent corrosion of the medium on the valve body.

Product technical paramters:

Nominal Diameter DN (mm)		50~1200
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Valve body	QT450,carbon steel, stainless steel
	Disc	QT450, carbon steel, stainless steel
	Seat	EPDM, NBR, VITON, PTFE
	Axle	2Cr13
Working temperature		≤120℃
Medium suitable		Water, oil and weak corrosive mediums
Connection		Flange connection

Product features:

1. Simple structure: The structure of rubber lined concentric butterfly valve is relatively simple, mainly composed of the valve body, valve plate, and valve stem, without the need for complex driving devices.
2. Easy to operate: The operation of the rubber lined concentric butterfly valve is very convenient, and the valve plate can be controlled to open or close and the flow can be adjusted by rotating the valve stem.
3. Good sealing performance: The sealing performance of the rubber lined concentric butterfly valve is very good, which can effectively prevent medium leakage.
4. Strong anti-corrosion performance: Rubber lining is used between the valve plate and valve body of the rubber lined concentric butterfly valve, which can effectively prevent corrosion of the medium on the valve body.
5. Wide application range: The rubber lined concentric butterfly valve is suitable for various pipeline systems, such as chemical, petroleum, power, light industry, and other fields.
