Product Details
Place of Origin: China
Brand Name: JGPV
Model Number: SEHA-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD499/Set to USD11899.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: Two weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Automation Control Equipment |
Purpose: |
Electro-Hydraulic Control |
Structure: |
Piston Type |
Type: |
Single Acting And Double Acting |
Air Source: |
3-7 Bars |
Manual Operation: |
Optional |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Quality Warranty: |
18 Months |
Name: |
Integrated Control Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Automation Control Equipment |
Purpose: |
Electro-Hydraulic Control |
Structure: |
Piston Type |
Type: |
Single Acting And Double Acting |
Air Source: |
3-7 Bars |
Manual Operation: |
Optional |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Quality Warranty: |
18 Months |
Name: |
Integrated Control Valve |

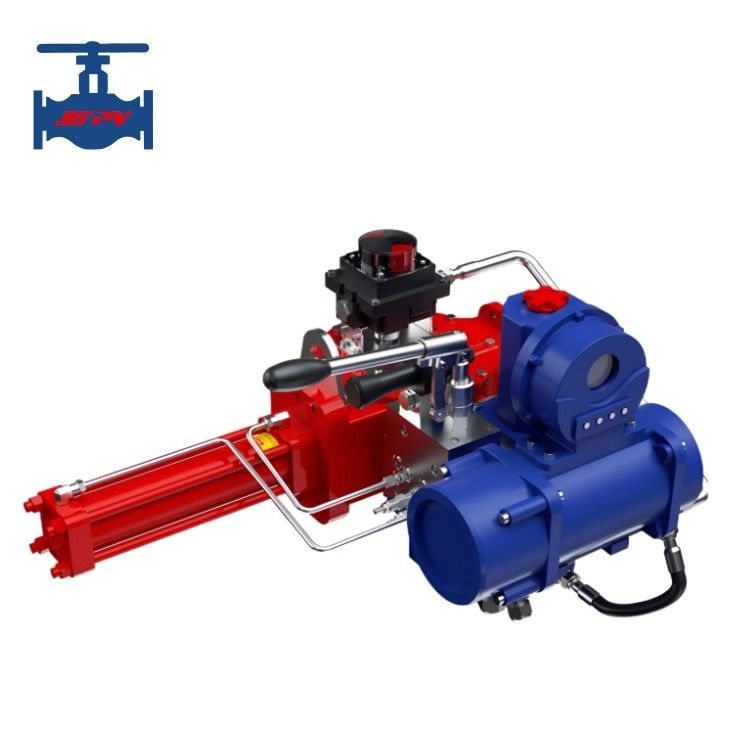

Integrated Control Fully Intelligent Electro-Hydraulic Actuator For Regulating Valve Use
Product introduction:
The SEHA series integrated control fully intelligent electro-hydraulic actuator adopts a high-precision synchronous servo motor as the driving force of the oil pump, combining the advantages of high stability and high output load of the hydraulic rotating mechanism. It is equipped with two forms of control for the motor's operation: open-loop pulse quantity or closed-loop analog quantity. It has the characteristics of high precision, high response, and high output force, and is the most advanced actuator to date.
The SEHA series integrated intelligent electro-hydraulic actuator product line is characterized by the ease of use of electric devices and the high torque and precise control of hydraulic output. It can be optionally equipped with single action mechanical failure reset. One actuator can meet all the requirements of on-site working conditions for ultra large output, easy maintenance, fast response, precise control, and fault safety.
Product technical parameter:
| Mode of action | Single acting and double acting |
| Control type | On/off type and modulating type |
| Control signal | 0/24VDC, 0/ 220VDC, 0/24VAC, 0/220VAC, 4-20mA |
| Thrust/Torque | Straight: 8000-160,000N.m |
| Thrust/Torque | Rotary: 5000-40,000N.m |
| Manual pump | Optional |
Product features:
1. Stable ACDC power output module,OLED display, high resolution.
2. PC sofware for zero, full position, sensitivityand other parameters can be adjusted.
3. High precision AD acquisition and control boards,real-time position, inlet pressure, outlet pressureinformation collecting.
4. Fully isolated output interface , high control systemprotection standard.
5. Stable position sensors /angle sensor, real-timedetection ofthe valve operating position.
6. WIFI for wireless connection.
7. Manual Hand pump.
