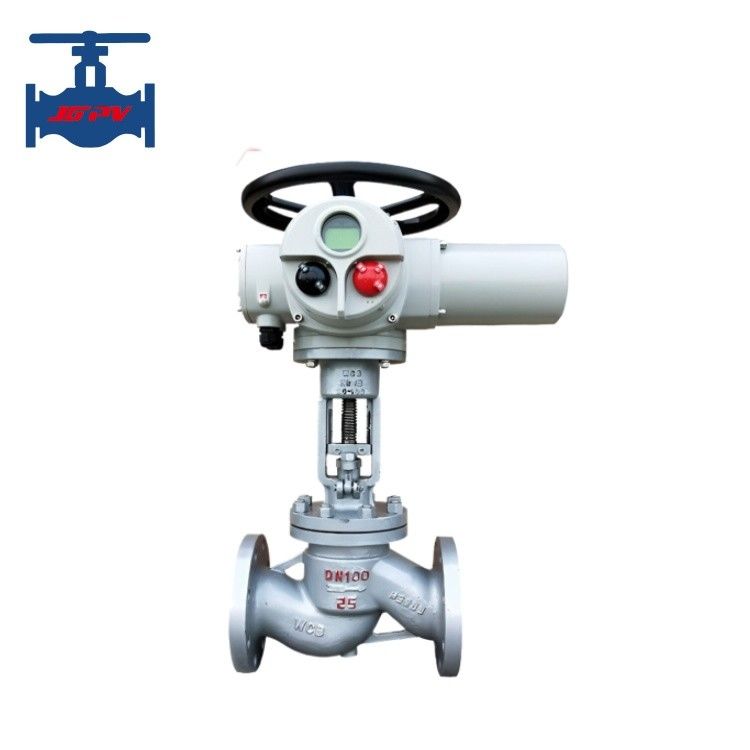

OEM ODM Electric Actuator Globe Valve Cast Steel Stainless Steel Globe Valve

Name: OEM ODM Electric Actuator Globe Valve Cast Steel Stainless Steel Globe Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: J941H-JGPV
Price: 7,483.50 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: J941H-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD269.5/pc - USD14699/pc

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                ODM Electric Actuator Globe Valve, Electric Actuator Globe Valve Stainless Steel, Stainless Steel Globe Valve Electric Actuator


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Industrial Valve Product	Purpose:	Pipeline Throttling Automatically
Medium Type:	Water, Steam And Oil	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure	Test Standard:	Strength Test, Sealing Test And Other Client Needs
Quality Warranty:	18 Months	Customized Support:	OEM And ODM Service Available
Name:	Electric Actuator Globe Valve

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Industrial Valve Product
Purpose:	Pipeline Throttling Automatically
Medium Type:	Water, Steam And Oil
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure
Test Standard:	Strength Test, Sealing Test And Other Client Needs
Quality Warranty:	18 Months
Customized Support:	OEM And ODM Service Available
Name:	Electric Actuator Globe Valve

OEM ODM Electric Actuator Globe Valve Cast Steel Stainless Steel Globe Valve

Electric Actuator Driven Cast Steel Stainless Steel Globe Valve

Product Introduction:

Electric globe valve is composed of an electric actuator and a shut-off valve body, it is the most widely used type of valve. Due to the low friction between the sealing surfaces during the opening and closing process, the shut-off valve is relatively durable, has a small opening height, is easy to manufacture, and is easy to maintain. It is not only suitable for medium and low pressure, but also for high pressure.

Electric globe valve is an advanced pipeline control tool with automatic control and precise control, it is saving labor costs, high safety, and widely applied in various industrial pipelines, it provides a guarantee for the safe, efficient, and stable operation of pipelines.

Product Technical Parameters:

Type Number:		J941H-JGPV
Nominal Pressure PN(MPa)		1.0 - 10.0
Nominal Diameter DN(mm)		15～300
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		WCB, CF8, CF8M, CF3, CF3M,
Medium suitable:		Water, steam, oil and nitric acid etc corrosive medium
Working temperature		≤425℃
Connection type		Flange
Operational method		Handwheel +electric actuator

Product features:

1. Automation control: The electric globe valve can be automatically opened and closed through an automation control system, and can be used to control the liquid in the pipeline automatically closes or opens when body pressure changes. This automation control can reduce labor costs and improve pipelines and reduce operational failures.

2. More precise control: The electric globe valve can control the liquid flow rate and flow rate in the pipeline through the rotation angle of the motor, which can achieve more precise control is now available to meet the needs of flow control and flow measurement.
