Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: D971F-16P
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD28.9/pc - USD1499/pc
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs per month
Standard Or Non-standard: |
Standard |
Product Features: |
Water Pipeline Control Valve Product |
Purpose: |
Open And Shut Off Pipeline |
Structure: |
Butterfly VLAVE |
Manufacturing Craft: |
Stainless Steel |
Body Material: |
CF8 |
Sealing Type: |
PTFE |
Port Size: |
DN50-DN1200 |
Test Standard: |
Strength & Sealing Test, Support Client Choose |
Quality Warranty: |
18 Months |
Standard Or Non-standard: |
Standard |
Product Features: |
Water Pipeline Control Valve Product |
Purpose: |
Open And Shut Off Pipeline |
Structure: |
Butterfly VLAVE |
Manufacturing Craft: |
Stainless Steel |
Body Material: |
CF8 |
Sealing Type: |
PTFE |
Port Size: |
DN50-DN1200 |
Test Standard: |
Strength & Sealing Test, Support Client Choose |
Quality Warranty: |
18 Months |

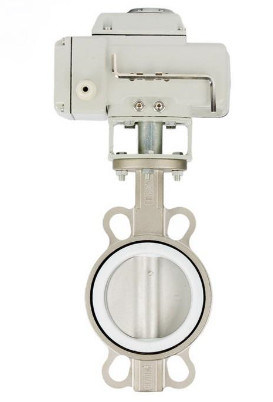

D971F-16P electric wafer type butterfly valve
Product Introduction:
The electric butterfly valve with electric actuator with on/off function to control operation, (AC220V/AC380V), has strong function,especially suitable for in the medium is thick,containing particles,fiber nature of the occasion. At present,the electric control valve is widely used in food,environmental protection, light industry, petroleum, paper, chemical,teaching and research equipment,power and other industries in the industrial automatic control system.
Product specification parameters:
Product specification parameters:
| Type number | D971F-16P | |
| Nominal Diameter DN(mm) | 50～1200 | |
| Nominal Pressure PN(MPa) | 1.6 | |
| Control method | Electricity: On/off switch | |
| Power supply | AC380V | |
| Main parts | Valve body | Stainless steel 304 (CF8) |
| Disc | Stainless steel 304 (CF8) | |
| Valve seat | PTFE | |
| Axle | Stainless steel 304 (CF8) | |
| Medium suitable: | Water, air, oil and nitric acid etc corrosive medium | |
| Working temperature | 150≤℃ | |
| Connection type | Wafer type | |
Product features:
